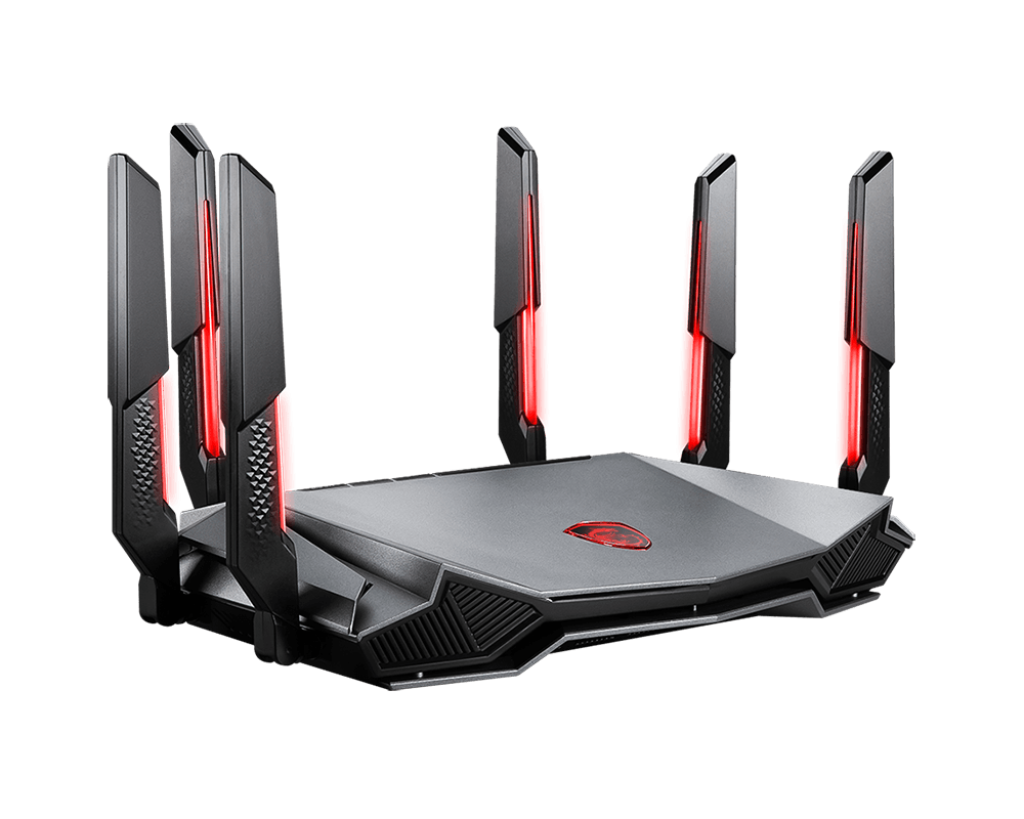

MSI RadiX AXE6600 WiFi 6E Tri-Band Gaming Router

WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
802.11g
802.11b
802.11a

2.4GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40MHz, up to 574Mbps
5GHz AX: 2x2(Tx/Rx) 1024/256-QAM 20/40/80MHz, up to 1201 Mbps
6GHz AX: 4x4(Tx/Rx) 1024/256-QAM 20/40/80/160MHz, up to 4804 Mbps

2.4GHz / 5GHz/ 6GHz

WPA-PSK
WPA2-PSK
WPA3-PSK

MU-MIMO
OFDMA
1024-QAM
Beamforming
Guest WiFi/ Multiple SSID
Smart connect
WPS
WiFi schedule

338x224x198 mm/ 13.3x8.8x7.8 inch

1.13kg / 2.5lb

RadiX AXE6600 WiFi 6E Tri-Band Gaming Router (GRAXE66)
Ethernet cable
Quick start guide
Power adapter

High-performance RGB antenna x 6

Quad-core 1.8GHz processor

256MB flash and 512MB DDR4 RAM

Web & App Filter
Customized Internet schedule

AI QoS
Traditional QoS
Bandwidth limiter
Real-time traffic monitor

DOS
Access Control : Service / IP
Inbound Filter
URL Filter

WAN Type : DHCP / Static IP / PPPoE / PPTP / L2TP
Port triggering
Port forwarding
DMZ
NAT Passthrough : PPTP / L2TP / IPSec / RTSP / H.323 / SIP / PPPoE

2.5 Gigabits port for WAN/LAN x1,
Gigabit port for WAN/LAN x1,
Gigabit port for LAN x3,
USB 3.2 Gen 1 x1

Media Server
Samba Server
FTP Server
Safely Remove

Dragon Shield, WPS, WiFi, LED,
Power, Reset

Power,
Internet,
LAN 1-4

Web GUI
MSI Router app (iOS and Android)
MSI center

Router mode
AP mode

AC Input : 100V~240V(50/60Hz)
DC Output : 12 V with max. 3.5 A
