PG34WQ15R2B

CURVED GAMING MONITOR

PRODUCT BRIEF:

• 34" WQHD (3440x1440) 1500R VA Display
• 165Hz High Refresh Rate
• 1ms (MPRT) Response Time
• 91% DCI-P3 / sRGB 115% Color Space
• Wide 178-Degree Viewing Angles
• VESA DisplayHDR™ 400
• AMD FreeSync™ Premium Technology
• Flicker Free Technology
• 2 x HDMI™ 2.0, 1 x DisplayPort™ 1.4
• Height, Swivel, Tilt Adjustment
• Integrated Wi-Fi Antenna
• (Compatible with Wi-Fi 4/5/6/6E/7)

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Unique Design

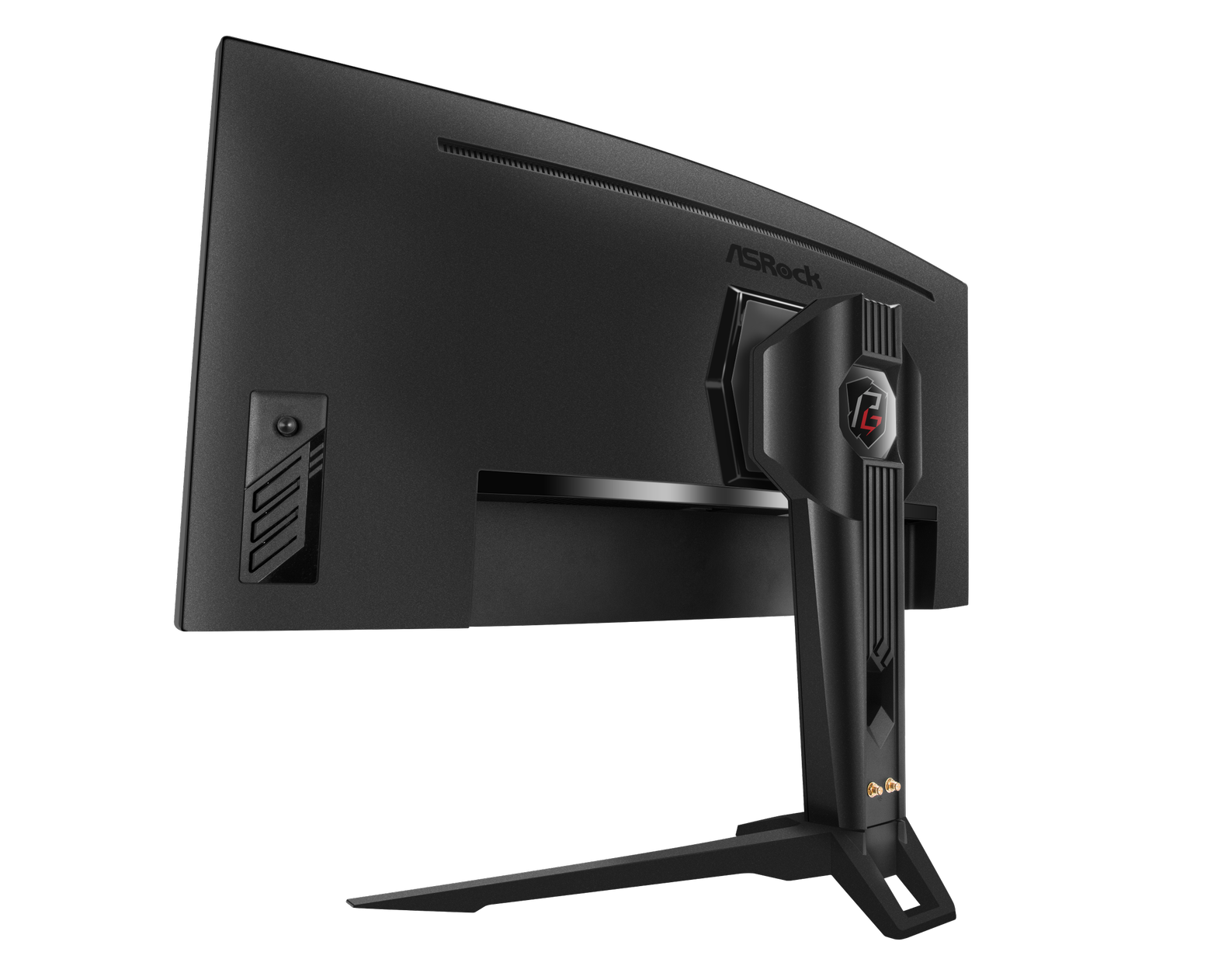

Phantom Gaming monitor equips with built-in Wi-Fi antenna. So, the Wi-Fi signal won’t be masked by the table. Now, connect the Wi-Fi antenna to your PC and enjoy gaming without latency!

Panel

1500R

165Hz

21:9 W-QHD

The curved Phantom Gaming monitor adopts 1500R curvature that offers you a greater sense of coverage. Let gamers enjoy gameplay with immersive visual from all angles.

Gaming Feature

Phantom Gaming monitor features Flicker-free technology, which can reduce flicker, minimize eyestrain, and provide a comfortable viewing experience.

Engineering

• Connectivity
• Ergonomic Design

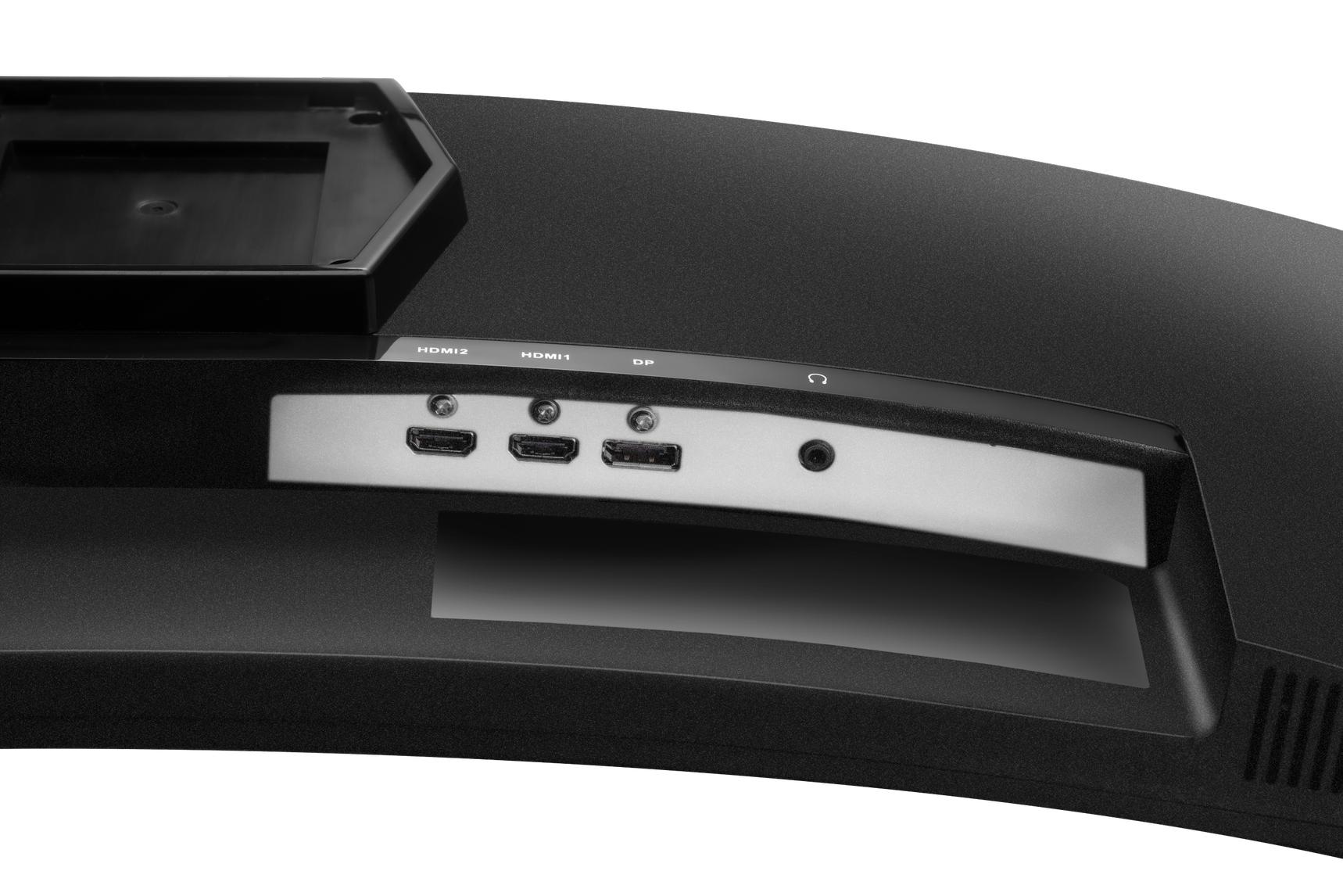

One Display port 1.4 supports up to a 165Hz refresh rate. Two additional HDMI 2.0 ports are available for secondary displays and compatible consoles. Plus, the two built-in speakers and one 3.5mm earphone output offer gamers a better gaming experience.

Display

• - Panel Size: 34 (inch)
• - Curvature: 1500R
• - Aspect Ratio: 21:9
• - Viewing Area: 797.22 x 333.72mm (H x V)
• - Pixel Pitch: 0.23175 (mm)
• - Panel Type: VA
• - Display Surface: Anti-Glare
• - Color Space: 91% DCI-P3 / sRGB 115%
• - Resolution: 3440 x 1440
• - Refresh Rate: 165Hz (Max.)
• - Brightness: 550 cd/m² (Typ.)
• - Contrast Ratio: 3000 :1 (Typ.)
• - Viewing Angle: 178°(H) / 178°(V)
• - Display Colors: 16.7M
• - Response Time: 1ms MPRT
• - HDR: VESA DisplayHDR™ 400
• - Flicker-free: Yes

Unique Feature

• - Integrated Wi-Fi Antenna* (7dBi)

*Compatible with Wi-Fi 4/5/6/6E/7

Audio

• - Speaker: 2Wx2

I/O Ports

• - 1 x DisplayPort™ 1.4
• - 2 x HDMI™ 2.0
• - 1 x Earphone Jack(3.5 mm)

Digital Signal Frequency

• HDMI:
• - 30kHz~160KHz (H); 48Hz~100Hz (V)
• DisplayPort:
• - 30kHz~260KHz (H); 48Hz~165Hz (V)

Power Consumption

• - Power Consumption(Typical): ≦65W
• - Power Consumption(Max) ≦100W
• - Power Saving Mode: ≦0.5W
• - Power Off Mode: ≦0.3W
• - Voltage: 100-240V, 50/60Hz

Mechanical Design

• - Tilt: +20° ~ -7°
• - Swivel: +20° ~ -20°
• - Height adjustment: 0~100 mm
• - VESA Mount: 100 x 100 mm

Dimension

(W x H x D)

• Dimension with Stand:
• - 809.34 x 574.46 x 283.10mm
• Dimension without Stand:
• - 809.34 x 365.84 x 120.10mm

Weight

• - Net Weight with Stand: 8.8kg
• - Net Weight without Stand: 6.53kg
• - Gross Weight: 12.35kg

Accessories

• - Power Cord
• - DisplayPort Cable
• - HDMI Cable
• - Wi-Fi Antenna Cables
• - Phantom Gaming Cable Sleeve
• - Quick Start Guide

Certificate

• - VESA DisplayHDR™ 400
• - AMD FreeSync™ Premium

Remark

• - DisplayPort™ 1.4 : 3440x1440 (Up to 165Hz)
• - HDMI™ 2.0 : 3440x1440 (Up to 100Hz)
