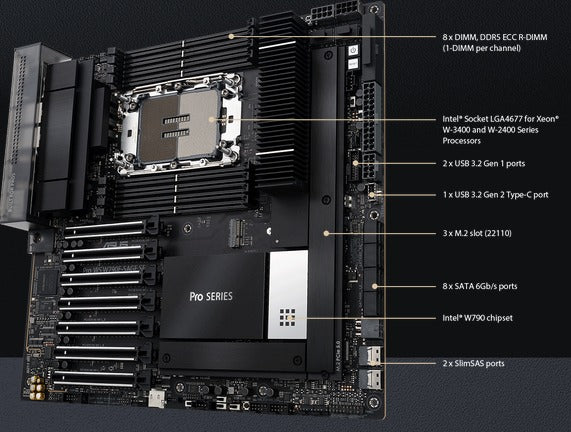

Pro WS W790E-SAGE SE Workstation Motherboard
The ASUS Pro WS W790E-SAGE SE is a high-performance workstation motherboard designed for Intel® Xeon® W-3400 and W-2400 processors. Featuring PCIe 5.0, dual 10G LAN, and server-grade remote management, it’s built for professionals demanding reliability and power.
Key Features:
-
Intel® LGA 4677 Socket: Supports Intel® Xeon® W-3400 & W-2400 processors with Turbo Boost Max 3.0.
-
Memory Support: Up to 2TB ECC R-DIMM DDR5 memory, 8-channel architecture, and Intel® XMP support.
-
PCIe 5.0 Slots: 7 x PCIe 5.0 x16 slots (W-3400) or 4 x PCIe 5.0 x16 slots (W-2400).
-
Storage Options: 3 x M.2 slots (PCIe 5.0/4.0), 2 x SlimSAS, and 8 x SATA 6Gb/s ports.
-
Dual 10G LAN: Intel® X710-AT2 10G Ethernet for high-speed networking.
-
Server-Grade IPMI: Remote management via AST2600 BMC controller and ASUS Control Center Express.
-
Robust Power Design: 14+1+1 power stages, 8-pin + 6-pin PCIe power connectors, and advanced cooling.
-
Trusted Stability: 24/7 operation tested, extensive QVL compatibility.
Connectivity:
-

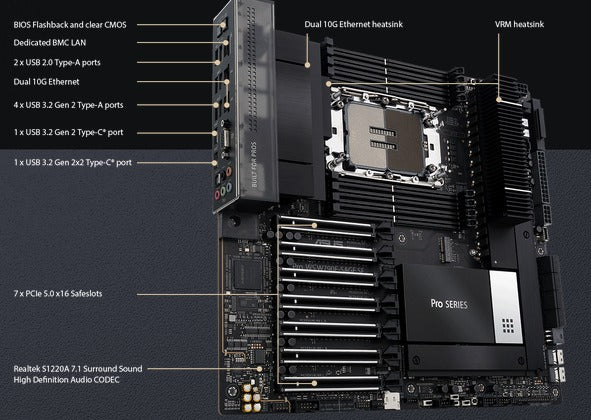

Rear I/O: 1 x USB 3.2 Gen 2x2 Type-C®, 5 x USB 3.2 Gen 2, 2 x USB 2.0, 2 x 10G LAN, 1 x 1G LAN, VGA, audio jacks, and optical S/PDIF.
-
Internal Connectors: 1 x USB 3.2 Gen 2 Type-C®, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, and more.
Special Features:
-
Extreme OC Kit: FlexKey, LN2 Mode, ReTry button, Safe Boot, and Start button for overclocking.
-
ASUS Thermal Solution: M.2 heatsinks, backplates, and VRM cooling for optimal performance.
-
ASUS 5X Protection III: Safeguards against overvoltage, ESD, and more.
-
ASUS EZ DIY: BIOS FlashBack™, Clear CMOS button, and pre-mounted I/O shield.
Software & Management:
-
ASUS Control Center Express: Remote monitoring and management.
-
AI Suite 3 & Armoury Crate: System optimization and fan control.
-
UEFI BIOS: Advanced settings for performance tuning.
Form Factor & Accessories:
-
EEB Form Factor: 12 x 13 inches (30.5 x 33 cm).
-
Included Accessories: SATA cables, M.2 rubber packages, CPU guards, and more.
