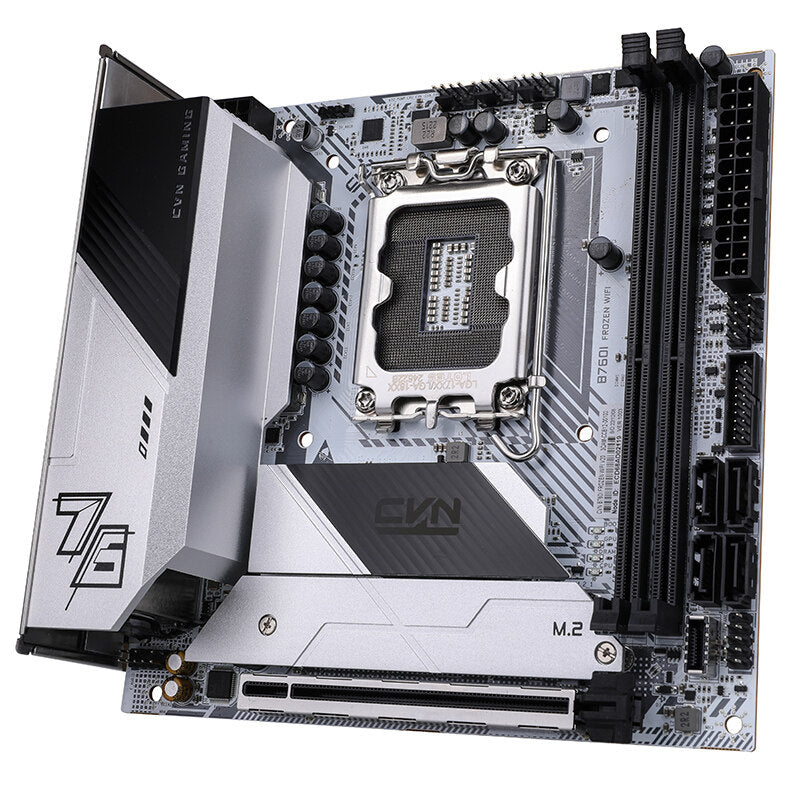

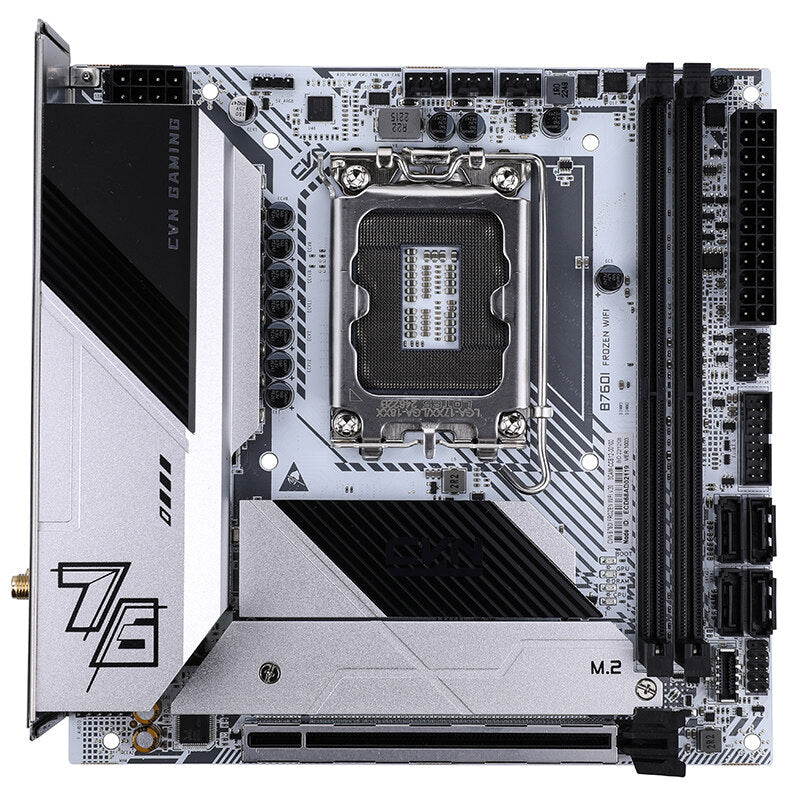

CVN B760I FROZEN WIFI V20
| Product Series | CVN series |
|---|---|
| Chipset | Intel B760 |
| Processor | Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor (* Please visit www.colorful.cn for the latest processor support list) |
| Memory | Two DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory) - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) |

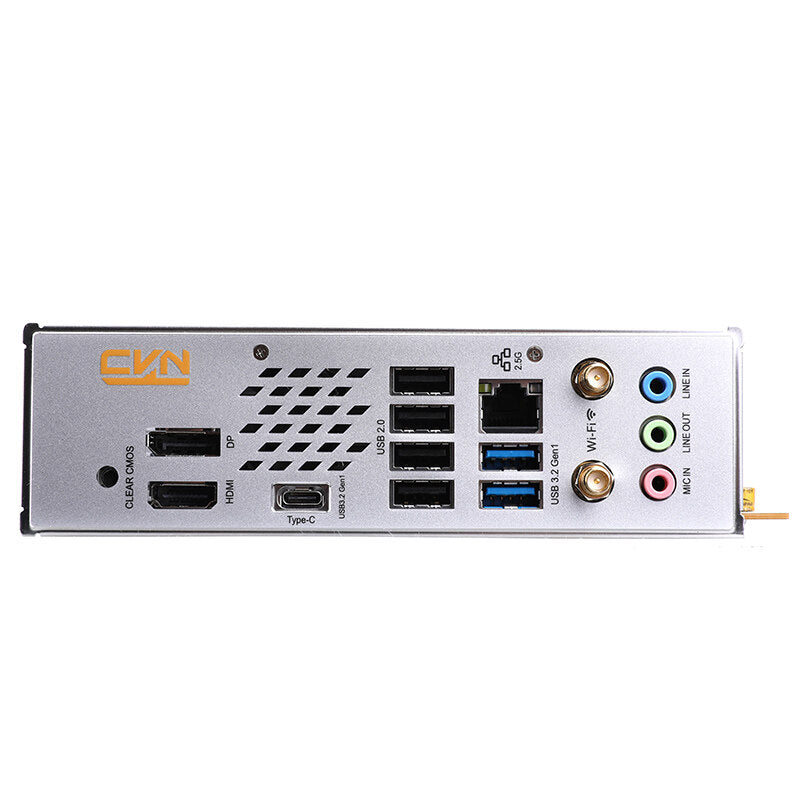

| Board I/O | Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 2 WiFi 6 antenna interfaces - 3 audio interfaces (audio input/audio output/microphone) - 1 clear CMOS button On board device interface: - 1 CPU fan pin - 1 system fan pin - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 1 5V 3-pin ARGB pins - 1 front audio pin - 1 before Set panel pin - 1 horn pin |
| Expansion Slots | 1 PCIe 5.0 x16 slot |
| BIOS | 128M UEFI, supporting multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, regular power on and power on |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125 2.5Gbit network card, AX201 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | 5.1 Channel sound card |
| Configuration | ITX 170mm x 170mm |
