SILENCIO S400
SILENCE HAS A SEQUEL
Silencio Design
Silencio Technology
Sound Dampening Material
Seamless Tempered Glass or Sound-Dampened Steel
Top & Front Ventilation
Reversible Steel Door
產品介紹
SILENCIO DESIGN
The Silencio’s minimalistic design cloaks its complexity. Design elements fine-tuned in form and function result in minimized noise and efficiently maintained system temperatures.
SILENCIO TECHNOLOGY
Behind the outer panels are pieces of meticulously placed sound dampening material. The development of the Silencio was driven by Sorama’s Cam64—this allowed for the entire sound spectrum to be visually analyzed by source, resonance pattern, and frequency.
With the identification of peaks within certain frequency ranges, fine-tuning the Silencio for the dispersion of resonance was made possible, reducing the prominence of noise generated by system components. Every detail in design optimized the Silencio for thermal efficiency and silence, from the type of material used to its placement.
SOUND DAMPENING MATERIAL
The Silencio utilizes a combination of sound dampening materials, from thick soft foam to heavy mass-loaded vinyl, to precisely counter prominent frequencies.
SEAMLESS TEMPERED GLASS OR SOUND-DAMPENED STEEL
Available with seamless tempered glass or a sound-dampened steel side panel, systems can be built for show or for stealth with the Silencio.
VENTILATION TOP
For an even higher demand for ventilation, the top panel’s Sound Dampening Cover can be removed for unrestricted ventilation. An optional dust filter for the top panel ventilation is included, allowing the top panel and front panel work in conjunction to cool the system.
VENTILATION FRONT
The front panel features a recurved vent, directing air in through the front bezel. The curve points downward, taking air in from the bottom, and straightens out to direct air in from either side of the steel front door.
REVERSIBLE STEEL DOOR
The steel front door features a reversible mounting system, capable of opening in either direction. To prevent vibrations, a softer, thicker material spans the steel structure in conjunction with a hinge system of magnets and rubber stompers.
SILENCIO FANS
Two Silencio FP 120mm PWM fans are pre-installed with rubber padding to reduce noise, featuring specially designed blades that allow both quiet operation and high air pressure.
VERSATILE HDD CAGE
The HDD cage is (re)movable. The cage can be shifted forward to make room for a longer PSU, backwards for additional radiator space, or completely removed if HDD storage is not needed
COOLING SUPPORT
Top:
120 / 140mm x 1 Fans
120 / 140mm x 2 Fans (remove ODD cage)
120 / 240* Radiator
*remove ODD cage
Front:
120 / 140mm x 2 Fans
120 / 140 / 240 / 280* Radiator
*may interfere with HDD mounted below ODD bracket
Rear:
120 x 1 Fan
120 x 1 Radiator
MOTHERBOARD SUPPORT
Mini-ITX, Micro-ATX
STORAGE SUPPORT
5.25” ODD x 1 (ODD version)
3.5” HDD x 4
2.5” SSD x 4
產品規格
MODEL NUMBER
MCS-S400-KN5N-S00 (Steel), MCS-S400-KG5N-S00 (TG)
SERIES
Silencio Series
SIZE
Mini Tower
AVAILABLE COLOR(S)
Black
MATERIALS
Steel, Plastic, Tempered Glass, Sound Dampening Material
DIMENSIONS (L X W X H)
418mm x 210mm x 408mm (incl. Protrusions), 403.5mm x 210mm x 400mm (excl. Protrusions)
MOTHERBOARD SUPPORT
Mini ITX, Micro ATX
EXPANSION SLOTS
4
5.25" DRIVE BAYS
1
3.5" DRIVE BAYS
4
2.5" DRIVE BAYS
4

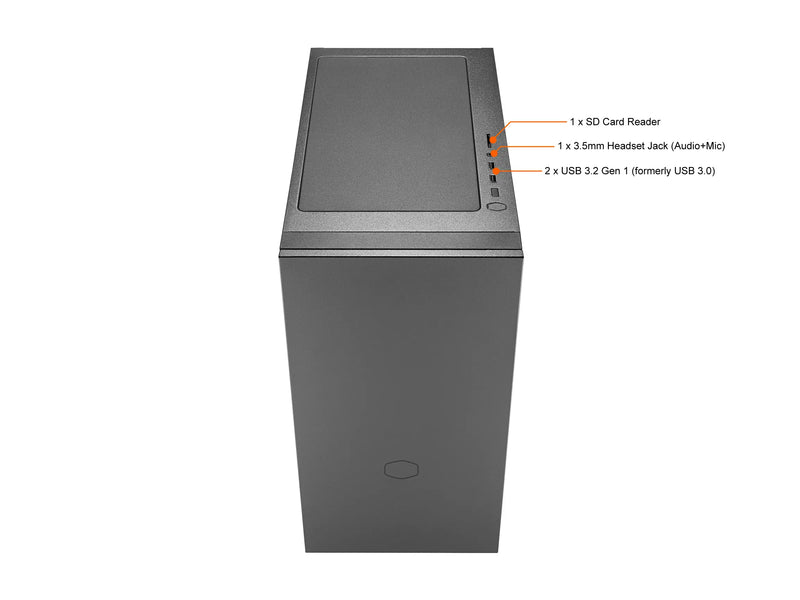

I/O PANEL
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Headset Jack (Audio+Mic), 1x SD card reader
PRE-INSTALLED FANS - FRONT
1x 120mm (PWM 800-1400 RPM)
PRE-INSTALLED FANS - REAR
1x 120mm (PWM 800-1400 RPM)
FAN SUPPORT - FRONT
2x 120/140mm
FAN SUPPORT - TOP
1x 120/140mm, 2x 120/140mm (remove ODD cage)
FAN SUPPORT - REAR
1x 120mm
RADIATOR SUPPORT - FRONT
120mm, 140mm, 240mm, 280mm (remove & reinstall ODD bracket to mount 280mm radiator, may interfere with HDD mounted below ODD bracket)
RADIATOR SUPPORT - TOP
120mm, 240mm (requires removal of ODD cage)
RADIATOR SUPPORT - REAR
120mm
CLEARANCE - CPU COOLER
Steel: 167mm, TG: 166mm
CLEARANCE - GFX
319mm
CLEARANCE - PSU
325mm (w/o front radiator & HDD cage), 140mm (HDD cage in backmost position)
