Cudy 多酷 WE9300 BE9300 2.5G 雙頻 WiFi 7 網絡擷取卡

節省5%
CUDY貨號: WE9300

價格:
銷售價格HK$379.00 正常價格HK$399.00

描述

KV
Bento Highlight
Speed

Lightning-Fast Wi-Fi Rivaling Ethernet

Enjoy a increadibly stable multi-gig connection that ensures seamless performance by aggregating multiple avaialble bands. This requires the Wi-Fi router and the desktop system to both support the MLO feature. Dual-band aggregation is available (6 + 5 GHz, 6 + 2.4 GHz, or 5 + 2.4 GHz).

Bluetooth

More Reliable Bluetooth 5.4

Enhance power efficiency and boost reliability with integrated Bluetooth 5.4. Experience longer battery life on your bluetooth keyboards, mice, and headphones and enjoy reduced latency and fewer recharges.

Dimension

Standard and Lower Brakets Included

Suitable for both standard tower PCs and low-profile HTPC builds. Install the antennas and position them vertically facing your router for the optimal signal quality.Requirement

Compatible with Mainstream Motherboards

The Wi-Fi and powering requires a PCI-E 1x, 4x, 8x, or 16x slot on the motherboard. The Bluetooth function requires a USB 9-Pin connector on the motherboard.

Installation Guide

Installation

Please install the card into the PCI-E slot until it's fully locked. Connect the USB cable to the connection on motherboard for the Bluetooth function. Go to cudy website and search WE9300 to find driver and install it for optimal performance.

Specification

Model Version WE9300 1.0
CPU Chipset Intel BE200
Wireless 6 GHz Wi-Fi Speed 5760 Mbps
5 GHz Wi-Fi Speed 2882 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
6 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Detachable
6 GHz Antenna Gain Max 5.32dBi
5 GHz Antenna Gain Max 4.54dBi
2.4 GHz Antenna Gain Max 3.09dBi
Detachable Wi-Fi Antennas Connector RP-SMA Female
Reliability Environment
  • Ambient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~158 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Requirements Hardware Requirement
  • Requires a PCI-E 1x or higher standard slot on the motherboard for powering and the WiFi function
  • Requires a USB 9-PIN slot on the motherboard for the Bluetooth function
Compatible OS
  • Windows 11 64-Bit
  • PC with Intel CPU
Driver Installation Manual driver installation for Windows. Driver available in the Download Center.
Certifications FCC, CE
Mechanical Dimension Device Body:
70×45.5×20 mm
2.76×1.79×0.79 inches
Antennas:
Φ15×221.5 mm
Φ0.59×8.72 inches
Product Weight 114.5 g (4.04 oz.)

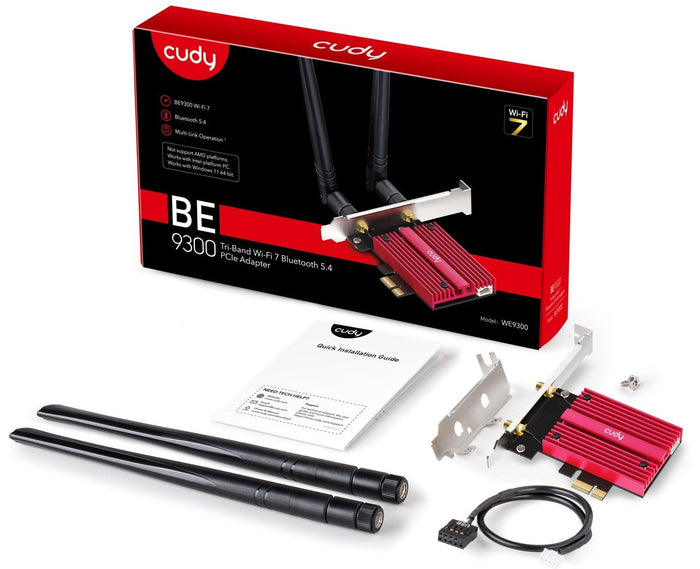

Package Content
  • WE9300
  • Detachable Antennas
  • Bluetooth to 9-PIN USB Cable
  • Low-Profile Bracket
  • Installation Guide
Ordering Information Retail Package Weight 266.3 g (9.39 oz.)
Retail Package Dimension 232×136×40 mm
9.13×5.35×1.57 inches
Carton Net Weight 16.0 kg (35.27 lbs)
Carton Gross Weight 17.2 kg (37.92 lbs)
Units per Carton 60
Carton Dimension 43.5×43×48 cm
17.13×16.93×18.9 inches
