Details

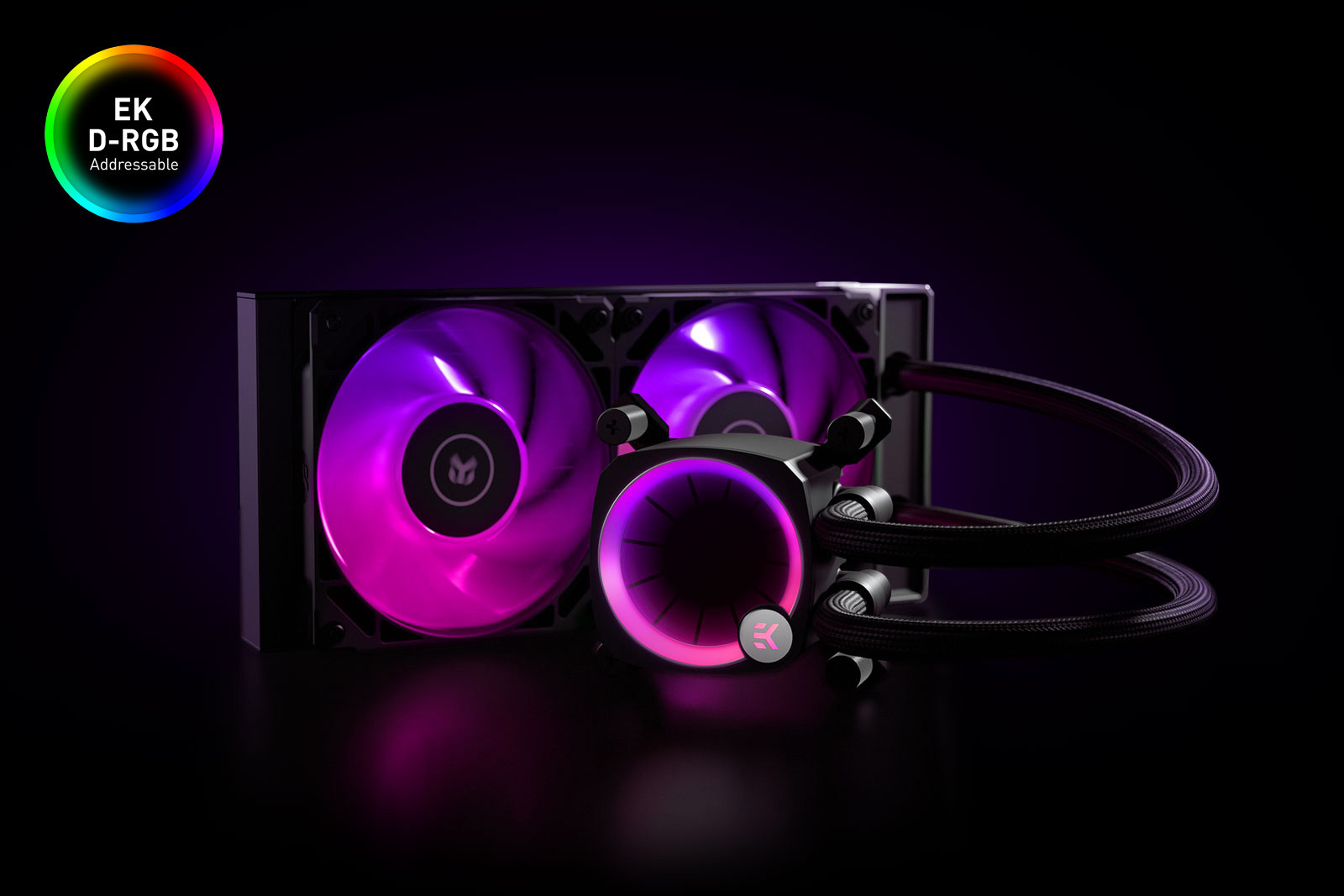

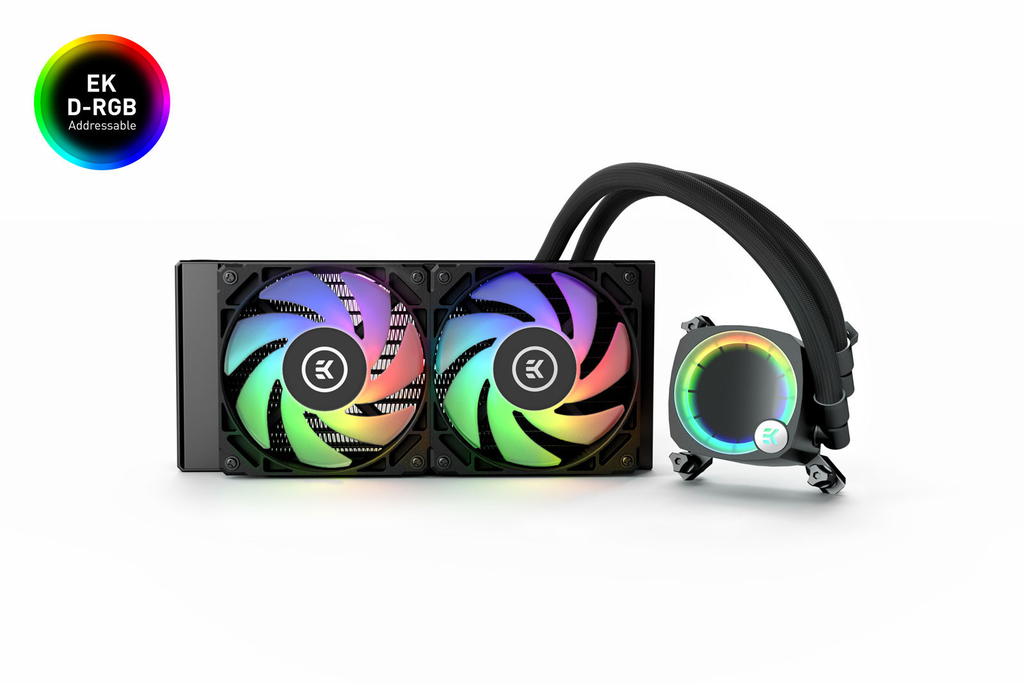

The EK-Nucleus AIO CR240 Lux D-RGB is an all-in-one liquid cooling solution offering a stylish fan-like gradient lighting effect on the pump unit to suit your needs for contemporary addressable RGB aesthetics. It is designed to fit most popular cases on the market today and features a double fan setup with a slim 240mm radiator. Compatible with most modern processors, it is also ready for the next-gen Intel socket.
Addressable RGB Lighting
Customize your all-in-one system to match your setup with its fully addressable RGB lighting effects. This closed-loop liquid CPU cooler offers a plug-and-play solution with a fan-like D-RGB lighting effect around the pump top for all who search for that perfect RGB AIO aesthetics.
This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the addressable RGB (D-RGB) header.
Rotatable Pump Top
The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed. The orientation can be changed in 90° increments, so if the cooler is installed upside down, rotate it 180 degrees to display the logo right side up. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.
New Positioning of Rotary Fittings
The AIO CR240 Lux comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The fittings are covered with an aesthetic black radiator cover at the connection of the tubing and the radiator to ensure a sleek design and flushed line with the added fans. The improved position of rotary fittings on the other side, which are now placed next to each other, allows the EK-Nucleus AIO to be installed in even the tightest spaces.
Universally Compatible and Easy to Install
All EK-Nucleus AIOs come with a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets. The installation process is very straightforward, thanks to the included manual and mounting mechanism. This product requires enough space to mount a single slim 240mm radiator, making it compatible with almost all modern cases.
Technical Specifications
-Radiator Dimensions (L, W, H): 281 x 124 x 27 mm
-Radiator Material: Aluminum
-Fan Dimensions: 120 x 120 x 25mm
-Max Fan Speed: 2200 RPM ± 10% RPM
-Fan RGB Type: 5V Digital (Addressable)
-Tubing length: 370 mm
-Pump Unit Dimensions: 82,3 x 69,2 x 61,6 mm
-Pump Unit Material: ABS housing, ABS top ring
-Pump Unit RGB Type: 5V Digital (Addressable)
-Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 500mm
System Requirements:
-4-Pin PWM Header for pump and fan operation
-3-Pin Addressable 5V D-RGB header
Enclosed:
-EK-Nucleus AIO CR240 Lux D-RGB unit
-EK-Vardar 120 D-RGB (2pcs)
-Tube of Thermal Paste
-Mounting Kit
-User Manual
Compatible CPU Sockets:
- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + Next-gen Intel Socket, 1700
- AMD Socket: AM4
- AMD Socket: AM5
5 Years Limited International Warranty
Designed in Slovenia, EU
Manufactured in China
Additional Info
Lighting Effect D-RGB
Sockets AMD , Intel
# of Fans 2
Fan Dimension 120mm
Radiator Size 240mm
