OverviewFormD and the T1 project originated as an R&D venture in manufacturing utilizing NCASE resources. The T1 enclosure is now integrated into the NCASE portfolio.

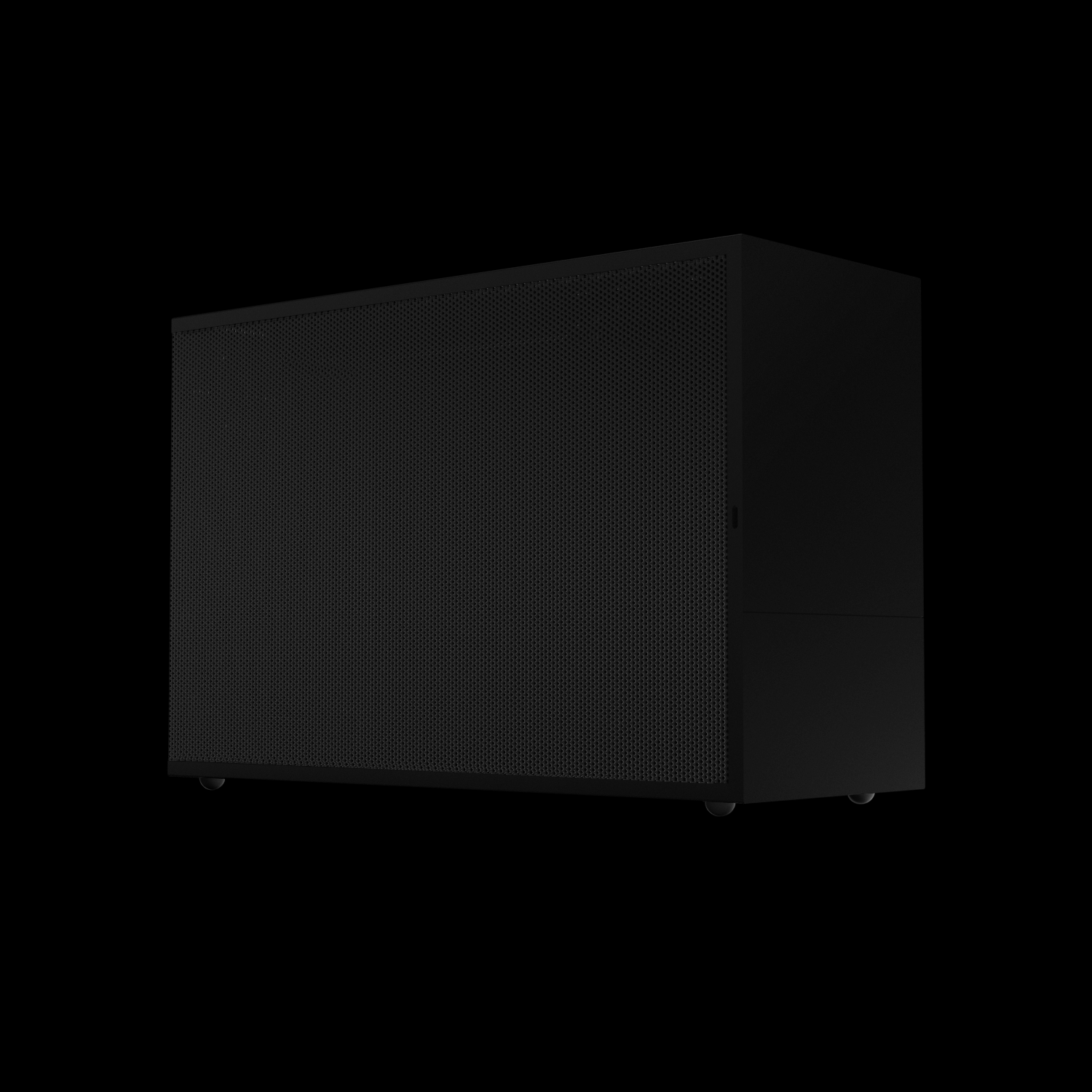

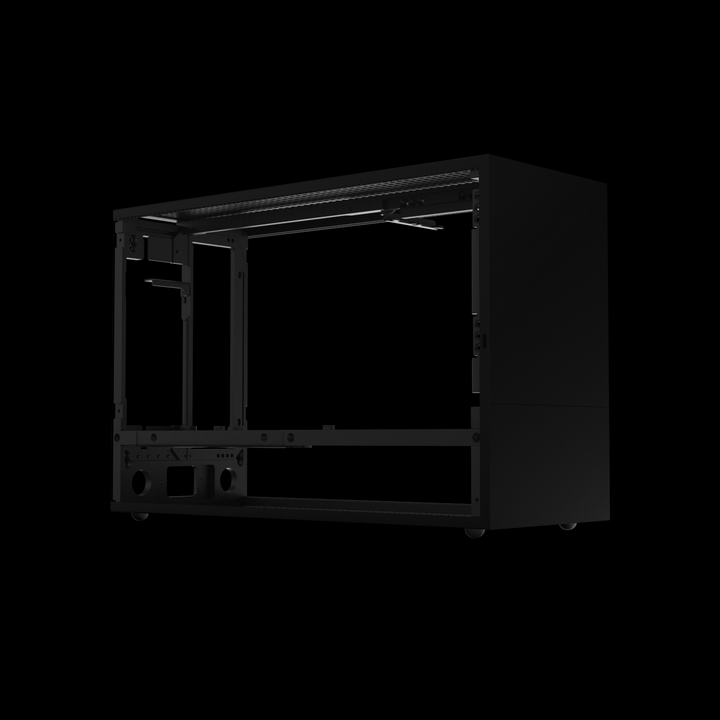

The T1 Sandwich Kit is a redesigned and refined version of the FormD T1 by NCASE.
The sandwich configuration enhances graphics card compatibility while maintaining a compact enclosure volume.
Unlocking the full potential of this configuration makes it ideal for tinkers and power users interested in pushing the limits.Materials1.5-15mm Aluminum, CNC Machined and Anodized
1-2mm Steel, Powder CoatedDimension (cm)13.5 x 22 x 33.5Foot Print (cm^2)452.25Volume (L)9.95Weight (KG)2.8Shipment Weight (KG)3.0Shipment Dimensions (cm)8 x 30 x 40MotherboardMini-ITX, Deep-ITXCPU Cooler Support48mm max height with 3.25-Slot GPU
53mm max height with 3-Slot GPU
58mm max height with 2.75-Slot GPU
63mm max height with 2.5-Slot GPU
68mm max height with 2.25-Slot GPU
73mm max height with 2-Slot GPU
78mm max height with 1.75-Slot GPU
83mm max height with 1.5-Slot GPU
88mm max height with 1.25-Slot GPUPCIe RiserPCIe X16 4.0 CableGraphics Card Support
Side: 2 x 120mm or 2 x 140mm based on components (requires a separate kit)Liquid Cooling Support1 x 120mm Radiator
1 x 240mm Radiator
2 x 240mm Radiator (requires a separate kit)
1 x 280mm and 1 x 240mm Radiator (requires a separate kit)
Note: Dual radiator setups require a single slot GPU to fit. Due to the GPU limitation and build complexity, it is not recommended for most people.Power SupplySFX Power Supply
SFX-L Power Supply (not recommended with AIO or open-loop water cooling setup)Front I/OPower Button
USB-C (requires a separate kit)
The T1 Sandwich Kit is a redesigned and refined version of the FormD T1 by NCASE.
The sandwich configuration enhances graphics card compatibility while maintaining a compact enclosure volume.
Unlocking the full potential of this configuration makes it ideal for tinkers and power users interested in pushing the limits.Materials1.5-15mm Aluminum, CNC Machined and Anodized
1-2mm Steel, Powder CoatedDimension (cm)13.5 x 22 x 33.5Foot Print (cm^2)452.25Volume (L)9.95Weight (KG)2.8Shipment Weight (KG)3.0Shipment Dimensions (cm)8 x 30 x 40MotherboardMini-ITX, Deep-ITXCPU Cooler Support48mm max height with 3.25-Slot GPU
53mm max height with 3-Slot GPU
58mm max height with 2.75-Slot GPU
63mm max height with 2.5-Slot GPU
68mm max height with 2.25-Slot GPU
73mm max height with 2-Slot GPU
78mm max height with 1.75-Slot GPU
83mm max height with 1.5-Slot GPU
88mm max height with 1.25-Slot GPUPCIe RiserPCIe X16 4.0 CableGraphics Card Support
GPUs no more than 140 x 325mm, 3.25-Slot thick
Note: Graphics Card depends on CPU Cooler height. See CPU Cooler Support section for more information
Fan SupportTop or Bottom: 1 or 2 x 120mm based on componentsSide: 2 x 120mm or 2 x 140mm based on components (requires a separate kit)Liquid Cooling Support1 x 120mm Radiator
1 x 240mm Radiator
2 x 240mm Radiator (requires a separate kit)
1 x 280mm and 1 x 240mm Radiator (requires a separate kit)
Note: Dual radiator setups require a single slot GPU to fit. Due to the GPU limitation and build complexity, it is not recommended for most people.Power SupplySFX Power Supply
SFX-L Power Supply (not recommended with AIO or open-loop water cooling setup)Front I/OPower Button
USB-C (requires a separate kit)
