銷售價格HK$888.00

Fractal Design ION SFX-L 650W 80Plus Gold Fully Modular PSU 金牌 全模組 主機電源 SFX

Fractal Design貨號: FD-PSU-ION-SFX-650G-BK-EU

價格:
銷售價格HK$888.00

請稍侯

描述

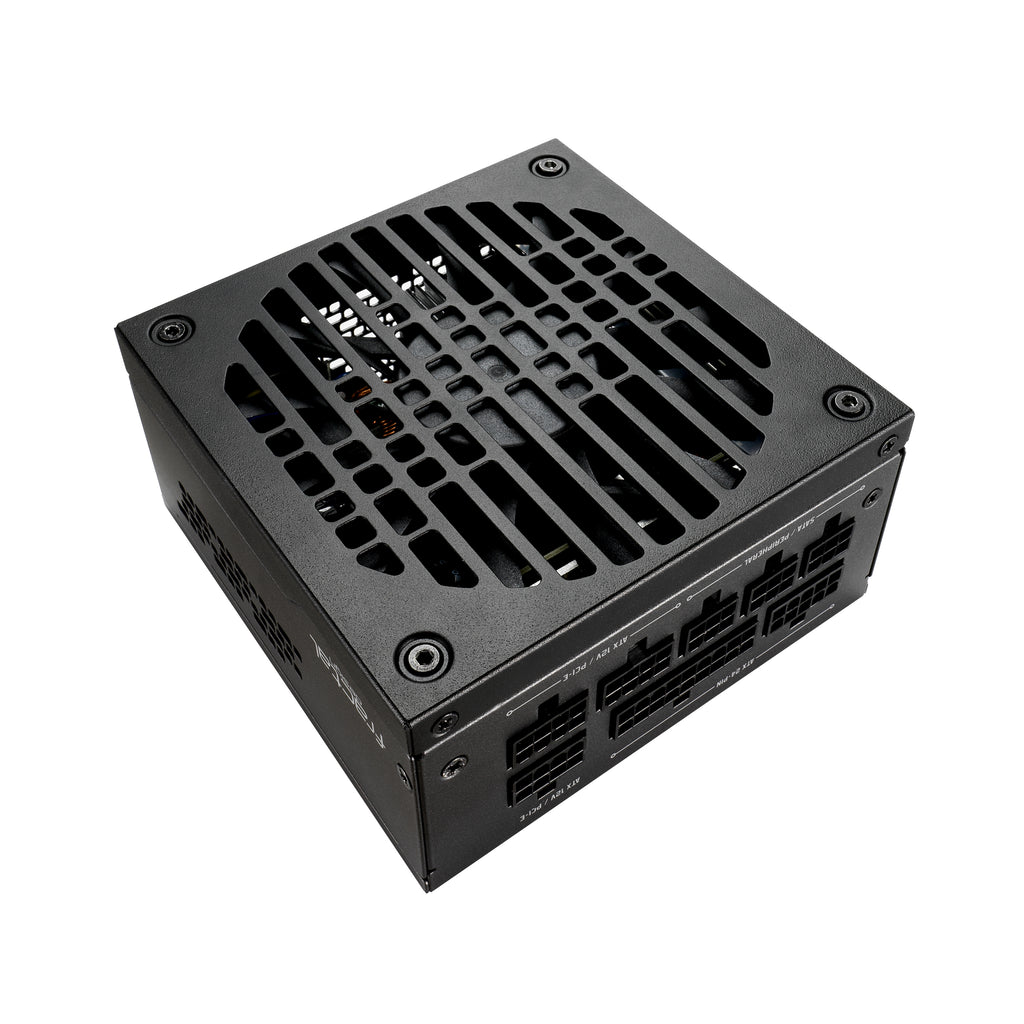

Ion SFX-L 650W Gold

Ion SFX-L Gold 是一款模組化高性能電源裝置,強調增強的電纜靈活性和卓越的輸出品質。



  • • UltraFlex DC 電線可輕鬆佈線和連接
  • • 具有真正長壽命FDB 的大型120 毫米風扇
  • • 80 PLUS® 金牌認證,可實現高效能並減少熱量產生

Keeping it down

You'll rarely hear a sound from the Ion SFX-L Gold, mainly due to a semi-passive mode that only activates the fan when it's really necessary. Even then, the true FDB bearings will make sure it remains very discrete.
  • The semi-passive Zero RPM mode maintains total silence under light loads.

  • The custom-tailored 120 mm fan with FDB bearings ensures discrete operation even under heavy use.



Full modular design

Reduced clutter results in a clean and simple installation

The power of flexibility

Thanks to an ultra-high strand count wire and special insulation, our UltraFlex DC wire bends and twists effortlessly to fit your installation instead of fighting it.
  • Combining an increased strand-count and reduced diameter of just 0.08 mm allows thinner, more flexible cables

  • Specially formulated insulation increases flexibility without impacting efficiency or current capacity

  • Cables flex and flow with ease for near-effortless routing and superior cable management opportunities

  • Cables bend and twist to make for easy connections in tight spaces with less resistance and strain



10 year warranty

All Ion SFX-L Gold power supplies are 80 PLUS® Gold Certified and backed with a 10-year warranty and full electrical protection suite for your peace of mind.

Japanese capacitors

Premium Japanese 105°C capacitors provide enhanced reliability and durability

Fully protected

Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection

Mounting options

Includes SFX-to-ATX mounting bracket

Reviews

Language Active language flag
  • de
  • gb
"The Fractal Design ION SFX Gold 650G is probably the finest SFX power supply on the market right now"
"If you are in the market for an SFX power supply for your next SFF build, one of the new Fractal Ion SFX series power supplies should be on your short list; highly recommended."
PC Perspective Read the full review
"Fractal Design takes a robust SFX platform and equips it with a price that is hard to beat. Add to this short flexible cables and this can be a SFF builders dream!"
"Fractal Design's Ion SFX model with 650W max power offers high performance, highly flexible modular cables and compact dimensions at a reasonable price."
Tom's Hardware Read the full review

Specifications

  • 80PLUS® Certification
    Gold
  • Modular cables
    Fully modular
  • Fan type
    Slim (15 mm) FDB bearing 120 mm fan
  • Maximum operating temperature (full load)
    40°C - Maximum 80% load at 50°C
  • Semi-passive operation
    Yes (Zero RPM)
  • Capacitors
    105°C Japanese Polymer
  • Life expectancy (MTBF) at max output load
    100,000 hours
  • PSU form factor
    SFX-L*
  • Cable type
    Modular 24-pin: Braided sleeve UltraFlex™ wire - Others: Flat UltraFlex™ wire
  • PSU Color
    Black/Gunmetal
  • Cable Color
    Black
  • Protection features
    Over voltage protection - Under voltage protection - Over power protection - Short circuit protection - Over current protection - Over temperature protection
  • Input voltage
    100-240V AC
  • Input frequency
    50-60 Hz
  • Input current
    6A/3A (500G)
  • Number of 12V rails
    1
  • Standby efficiency
    ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
  • Sleep State Compliance
    C6/C7
  • Approvals & Certifications
    CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
  • Warranty
    10 Years
  • *NOTE
    Ion SFX-L is not compatible with Node 202

Connectors

  • ATX
    1
  • EPS/ATX12V
    1
  • PCIe
    2
  • SATA
    4
  • Peripheral
    2

Cable Configuration (length in mm between connectors)

  • ATX 24-pin
    350
  • EPS/ATX12V 4+4 pin
    400
  • PCIe 6+2 pin
    400+100
  • SATA
    300+200+200+100
  • Peripheral
    300+200

DC Output

  • 3.3V
    20A
  • 5V
    20A
  • 3.3V and 5V combined
    100W
  • 12V
    41A
  • -12V
    0.3A
  • +5Vsb
    3A
  • Total Power
    500W

Other

  • Package contents
    • Ion SFX-L PSU with protective bag • Modular cables in a convenient storage bag • Screw pack with Velcro cable ties • SFX-to-ATX bracket • AC power cord (localized) • User manual
  • Unit dimensions (LxWxH)
    125 x 125 x 63.5 mm
  • Net weight (unit only)
    1.11 kg
  • Package dimensions (LxWxH)
    260 x 170 x 95 mm
  • Package weight
    1.91 kg
  • EAN
    7340172702016
  • UPC
    843276102012
  • Product code
    FD-PSU-ION-SFX-500G-BK
