銷售價格HK$1,020.00

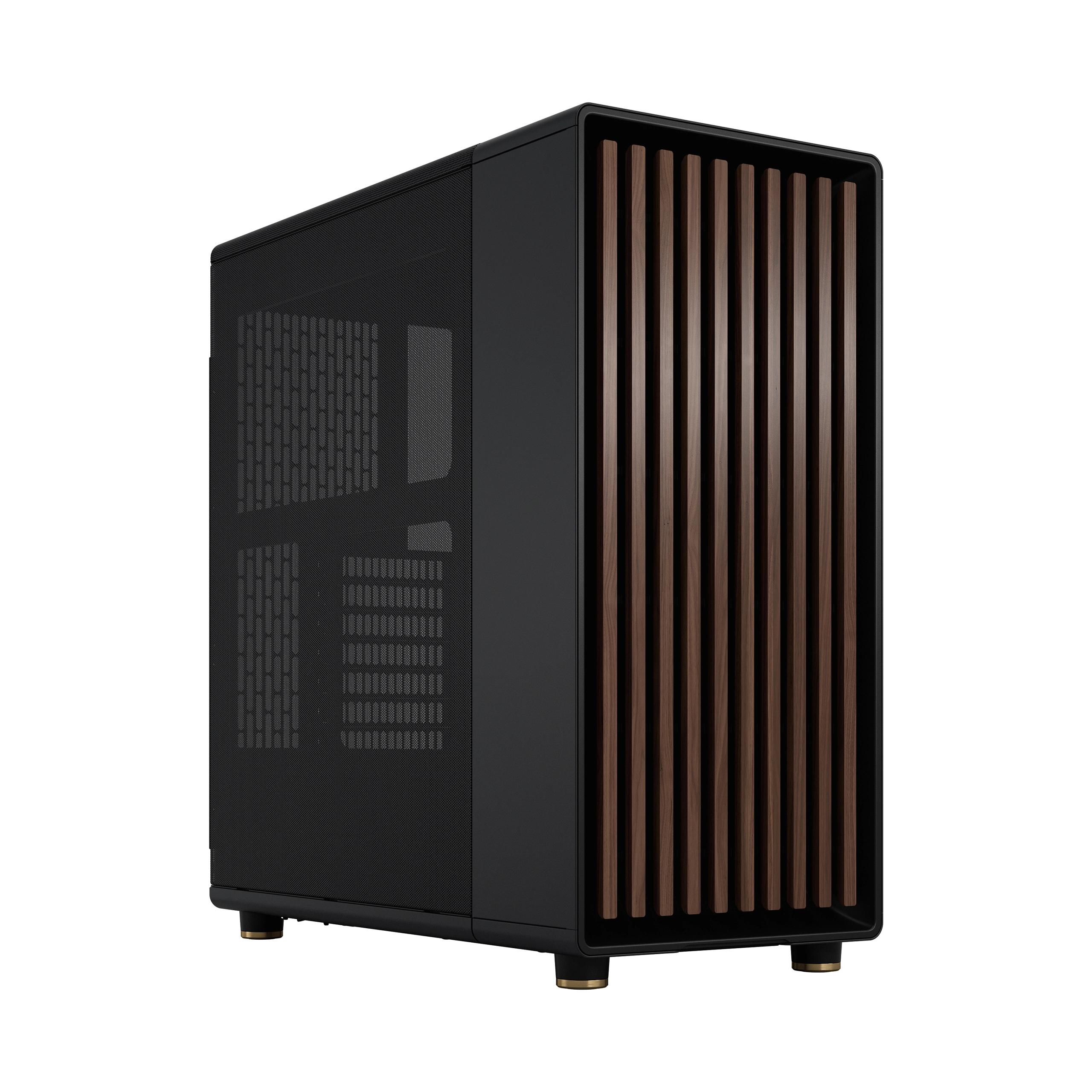

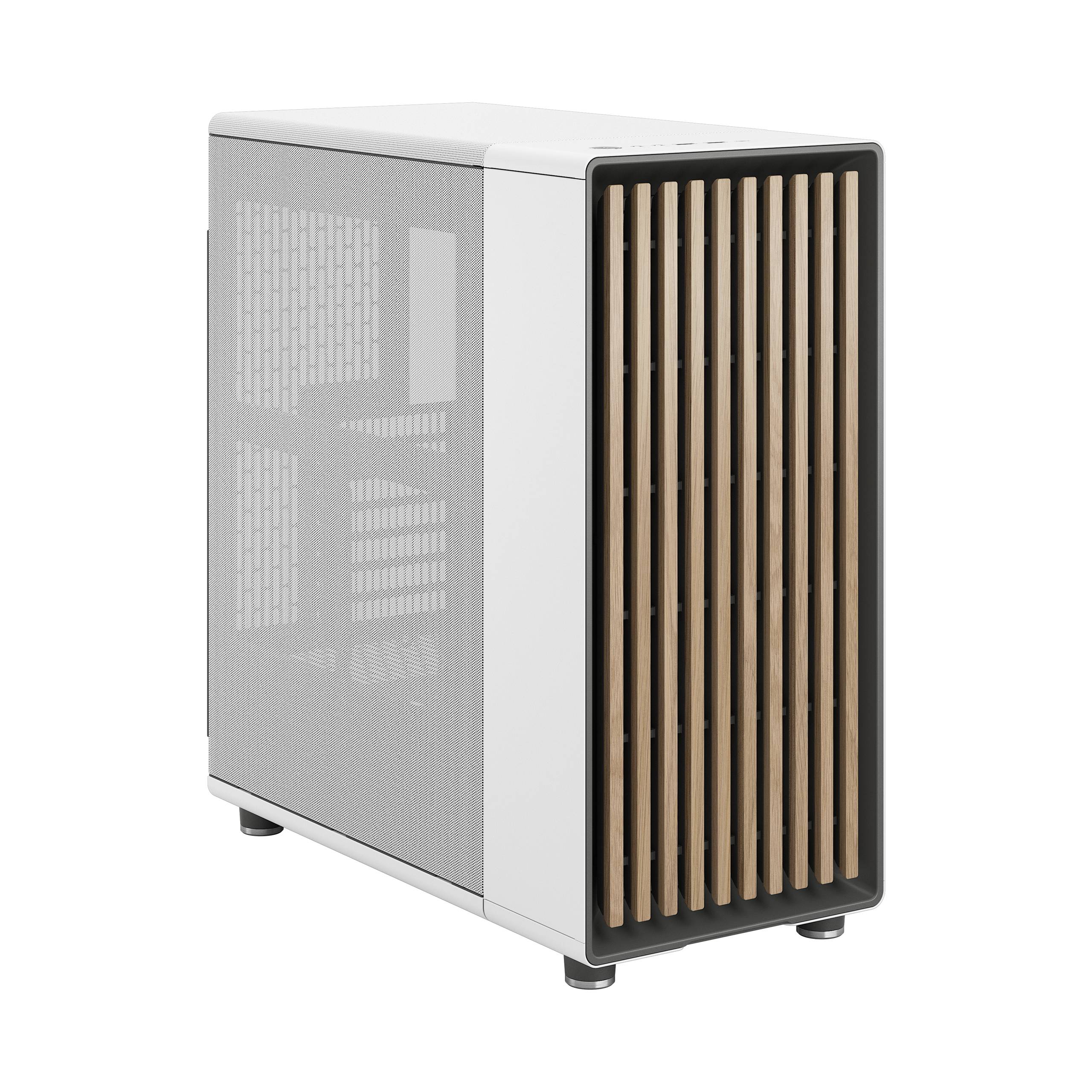

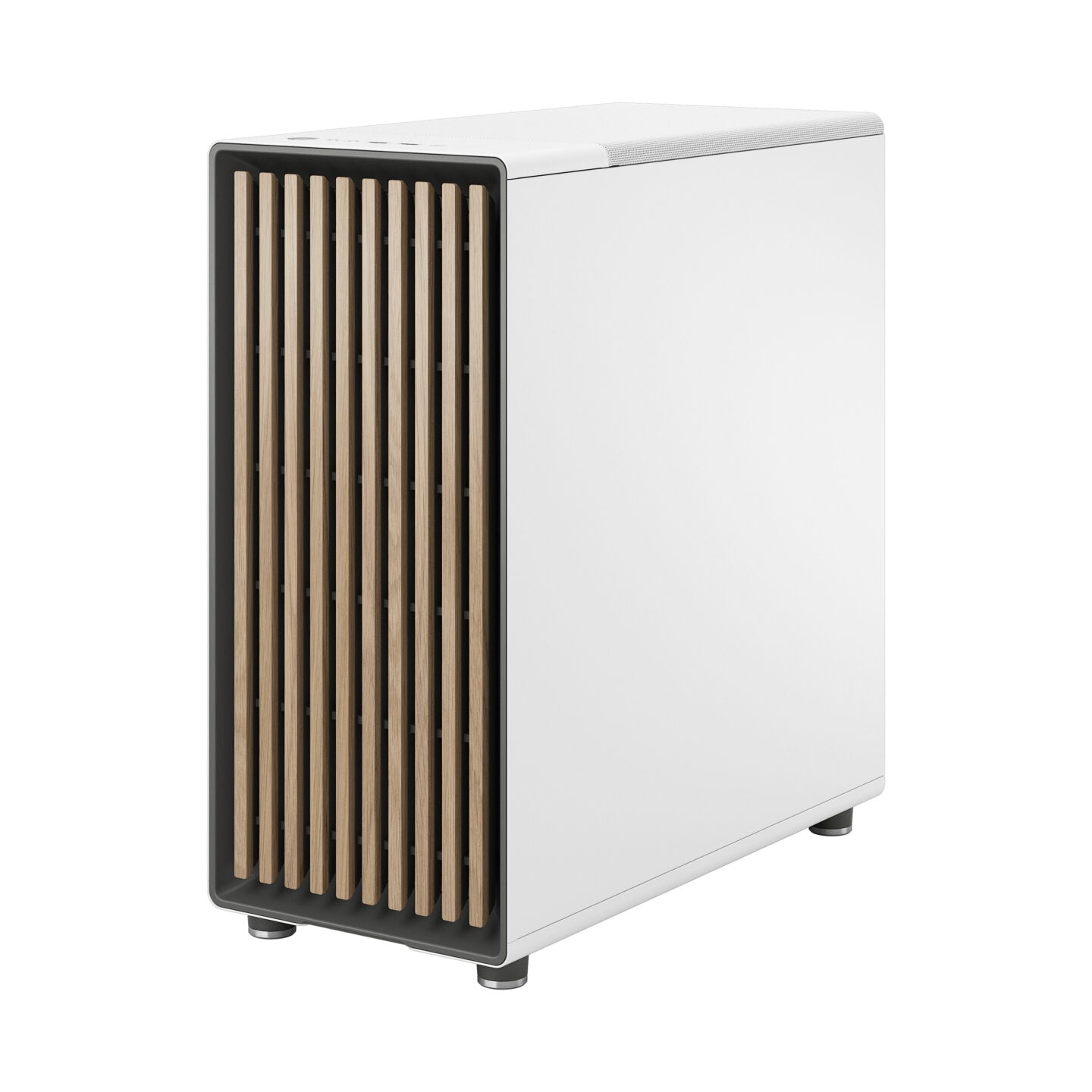

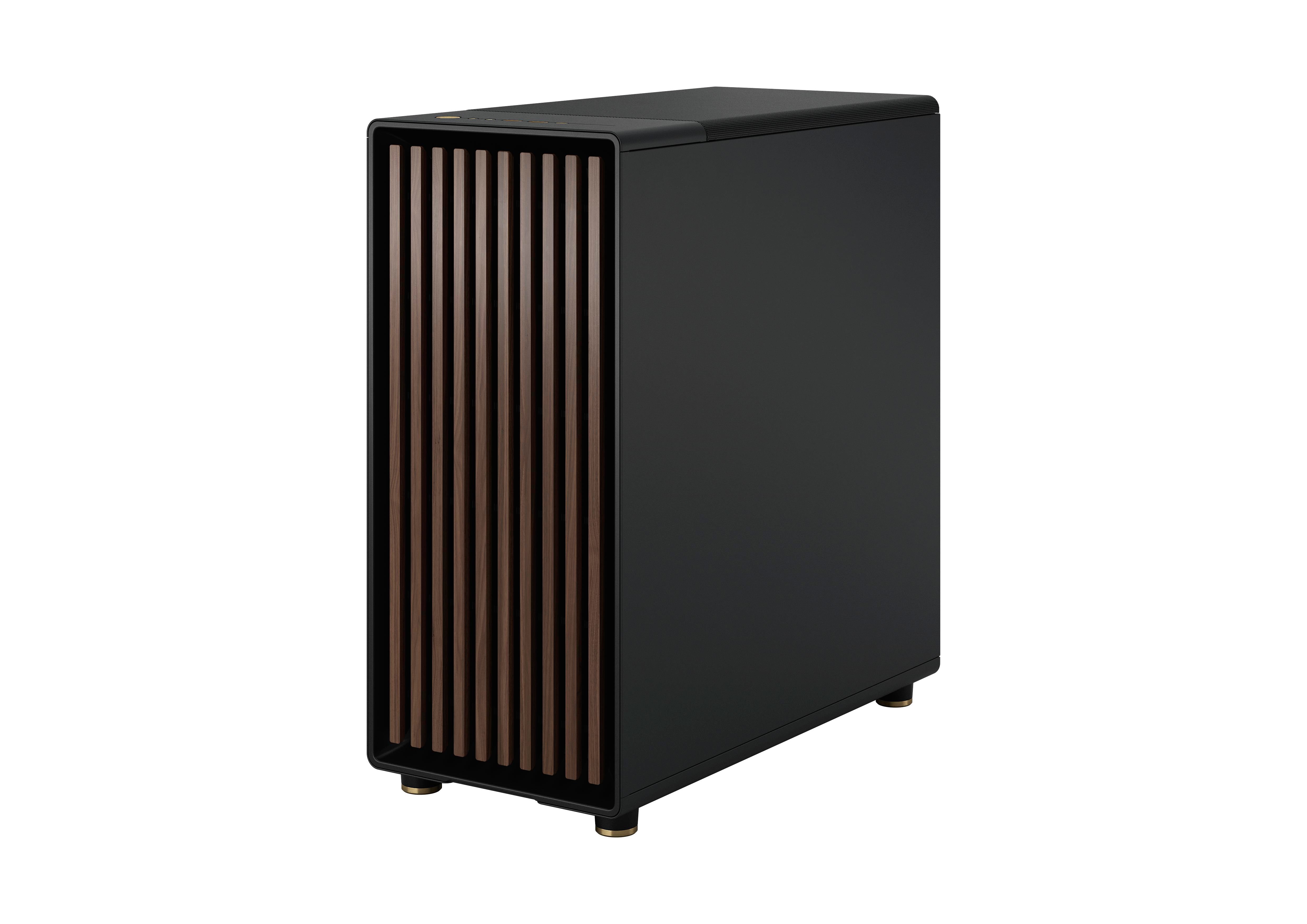

Fractal Design North Mesh ATX Case 機箱 (Chalk White/Charcoal)

Fractal Design貨號: FD-C-NOR1C-01

顏色: Charcoal
價格:
銷售價格HK$1,020.00

描述

預訂中,下批到貨日期為4月中到尾

Specifications

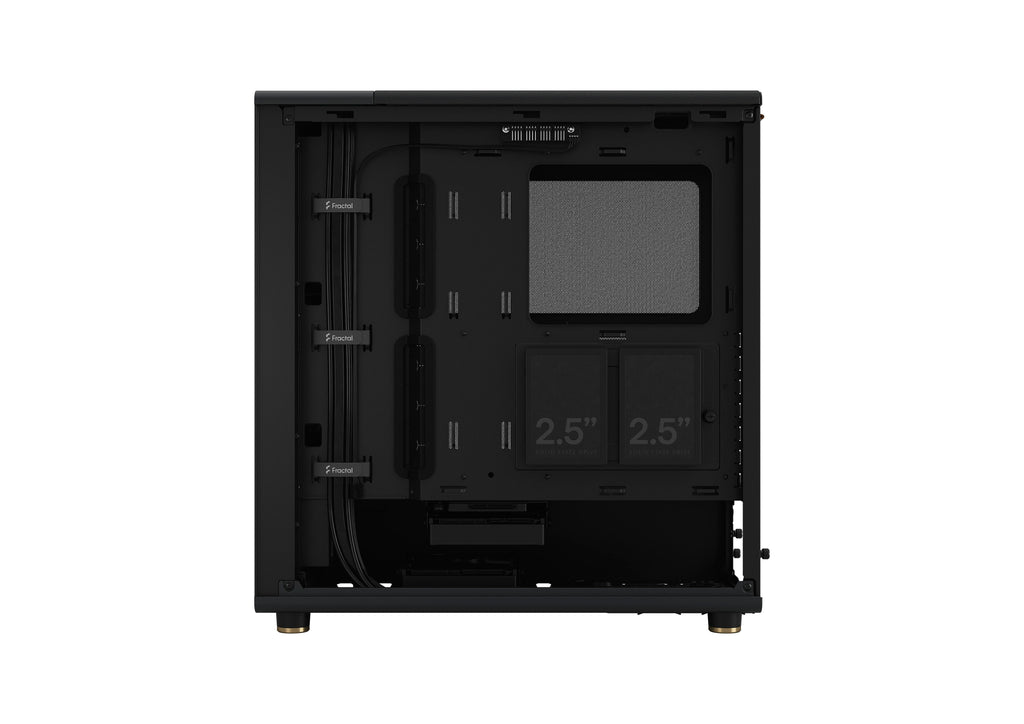

  • Dedicated 2.5" drive mounts
    2
  • Combined 3.5/2.5” drive mounts
    3 (2 included)
  • 5.25” drive mounts
    0
  • Expansion slots
    7
  • Front interface
    1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
  • Total fan mounts
    8 x 120 mm or 6 x 140 mm
  • Front fan
    3 x 120, 2 x 140 mm (2 x Aspect 140 mm PWM Included)
  • Top Fan
    2 x 120/140 mm
  • Rear fan
    1 x 120 mm
  • Dust filters
    Front, PSU
  • Fixed cable straps
    Yes
  • Cable routing grommets
    Yes
  • Captive thumbscrews
    HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
  • Left side panel
    Mesh or tempered glass
  • Right side panel
    Steel

Compatibility

  • Motherboard compatibility
    ATX / mATX / Mini-ITX
  • Power supply type
    ATX
  • PSU max length
    1 HDD Tray: 255 mm max, 2 HDD Tray: 155 mm max
  • GPU max length
    355 mm with front fan mounted / 300 mm with 360 mm front mounted radiator
  • CPU cooler max height
    145 mm with Fan Bracket (Mesh version only)/ 170 mm w.o
  • Front radiator
    Up to 360 mm
  • Top radiator
    Up to 240 mm (See manual for details on ram clearance)
  • Rear radiator
    1 x 120 mm (If using a rear radiator the mesh version fan bracket can only be slotted into the bottom position)
  • Cable routing space
    30 mm

Dimensions

  • Case dimensions (LxWxH)
    447 x 215 x 469 mm
  • Case dimensions w/o feet/protrusions/screws
    433,5 x 215 x 450 mm
  • Net weight
    7.6 kg (Mesh) / 7.7kg (TG)
  • Package dimensions (LxWxH)
    565 x 326 x 553 mm
  • Gross weight
    9.55 kg (Mesh) / 9.3kg (TG)

Other

  • Package contents (Mesh version)
    North case, Accessory Box, Fan Bracket Accessory Box, User Manual
  • Package contents (TG version)
    North case, Accessory Box, User Manual
  • EAN
    Charcoal Black: 7340172704706, Charcoal Black TGD: 7340172704713, Chalk White: 7340172704720, Chalk White TGC: 7340172704737
  • UPC
    Charcoal Black: 843276104702, Charcoal Black TGD: 843276104719, Chalk White: 843276104726, Chalk White TGC: 843276104733
  • JAN
    Charcoal Black: 4537694310512, Charcoal Black TGD: 4537694310529, Chalk White: 4537694310536, Chalk White TGC: 4537694310543
  • Product Code
    Charcoal Black: FD-C-NOR1C-01, Charcoal Black TGD: FD-C-NOR1C-02, Chalk White: FD-C-NOR1C-03, Chalk White TGC: FD-C-NOR1C-04
  • Warranty
    2 Years
