描述
-
InterfacePCI-Express 4.0 x4, NVMe 1.4
-
Form FactorM.2 2280
-
Total Capacity1000GB
-
NAND3D TLC NAND Flash
-
External DDR CacheDDR4L 1GB
-
Sequential Read speedUp to 7300 MB/s
-
Sequential Write speedUp to 6000 MB/s
-

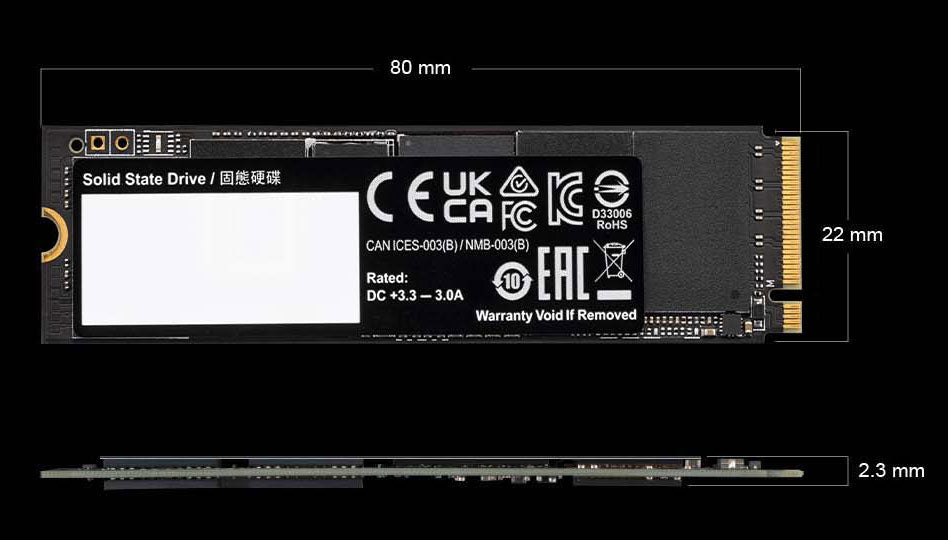

Dimension80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm)
-
Mean time between failure (MTBF)1.6 million hours
-
Power Consumption (Active)Average: R : 6.6W, W : 6.7W
-
Power Consumption(Idle)(ASPT on)<30mW
-
Temperature (Operating)0°C to 70°C
-
Temperature (Storage)-40°C to 85°C
-
Warranty
- 1. Limited 5-years or 700TBW.
- 2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. - 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
-
Note
- • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
- • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
- • Speeds based on internal testing. Actual performance may vary.
- • 1GB = 1 billion bytes. Actual useable capacity may vary.
-
Test ConfigurationOS: Windows 11 22H2 (OS build 22621.819)
CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G
Memory: DDR5 5600 16GBx2
Chipset: AM5 X670 (X670E AORUS MASTER)
