Compatibility |
Intel LGA1700/1200/1151/1150/1155/1156 AMD AM4 |
|
TDP |
180W |
|
Overall Dimension |
124×72×150mm (L×W×H) |
|
Heatsink Material |

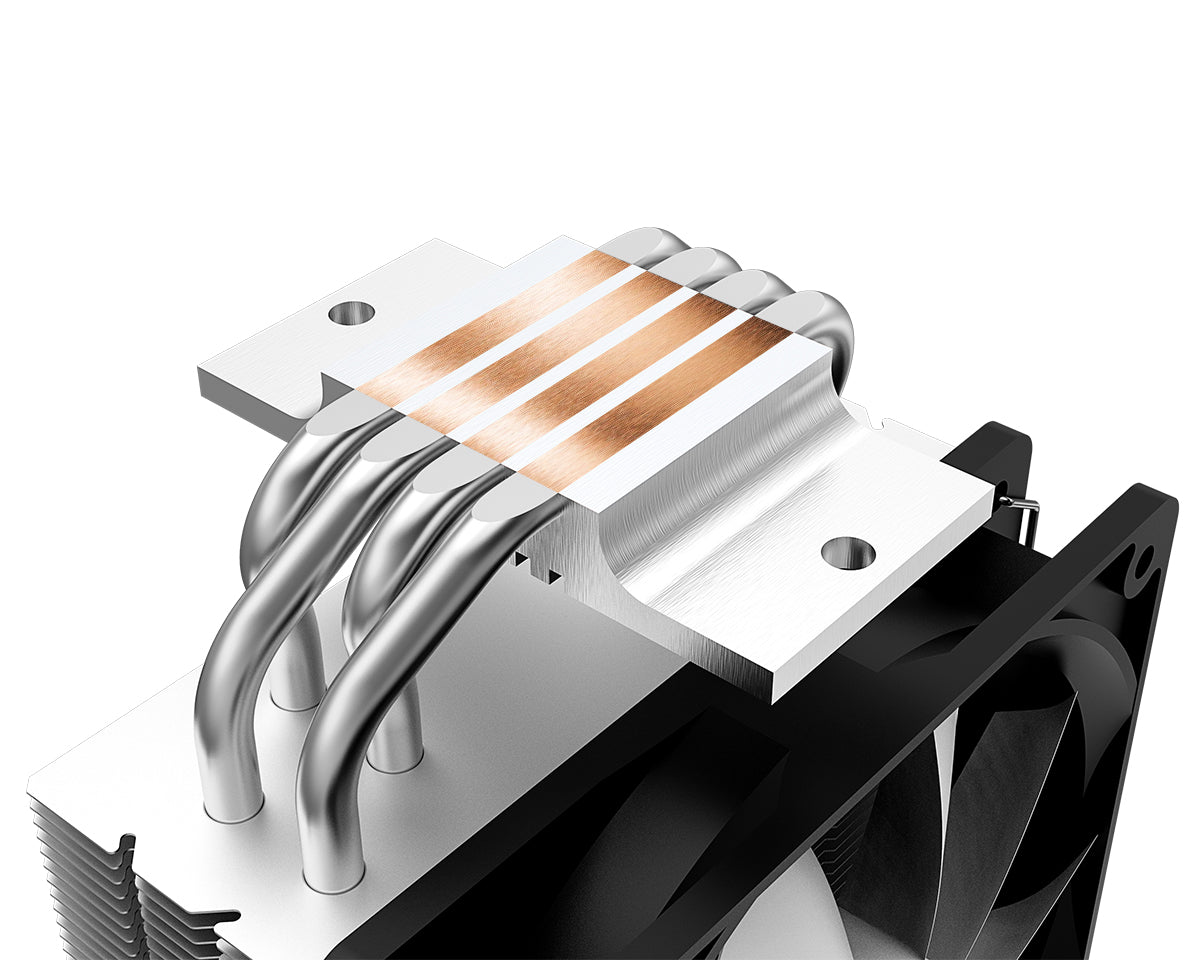

4×Ф6mm Heatpipe(Direct Touch)+Aluminum Fin |
|
Weight |
850g |
|
Fan Dimension |
120×120×25mm |
|
Fan Speed |
500±200~1500±10%RPM(PWM)(ARGB) |
|
Max. Air Flow |
68.2CFM |
|
Max. Static Pressure |
1.87mmH2O |
|
Noise |
13.8-30.5dB(A) |
|
Rated Voltage |
12VDC (4pin PWM) / 5V (3pin ARGB) |
|
Operating Voltage |
10.8～13.2VDC |
|
Started Voltage |
7VDC |
|
Rated Current |
0.25A |
|
Power Input |
3W |
|
Bearing Type |
Hydraulic Bearing |
|
Connector |
4Pin PWM / 5V 3Pin ARGB |
