Essentials
Product Collection
Intel® NUC Kit with 13th Generation Intel® Core™ Processors
Code Name
Products formerly Raptor Canyon
Status
Launched
Launch Date
Q4'22
Supported Operating Systems
Windows 11, 64-bit*
Board Number
NUC13SBBi9
Board Form Factor
PCIe
Internal Drive Form Factor
M.2 and 2.5" Drive
# of Internal Drives Supported
5
TDP
125 W
Board Chipset
Processor Included
Intel® Core™ i9-13900K Processor (36M Cache, up to 5.80 GHz)
Total Cores
24
Total Threads
32
Lithography
Intel 7
Max Turbo Frequency
5.80 GHz
Warranty Period
3 yrs
Supplemental Information
Embedded Options Available
No
Memory & Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR5 SODIMM
Max # of Memory Channels
2
Max # of DIMMs
2
ECC Memory Supported ‡
No
Processor Graphics
Integrated Graphics ‡
Yes
Graphics Output
2x Thunderbolt 4, HDMI 2.1 TMDS compatible (4K60)
# of Displays Supported ‡
3
Discrete Graphics
Supports PCIe x16 Gen5 3-slot wide GPU
Expansion Options
PCI Express Revision
Gen5, Gen4
PCI Express Configurations ‡
M.2 PCIe X4 Gen4 slots (CPU), 2x M.2 PCIe X4 Gen4 slots (PCH); Triple-wide PCIe X16 Gen5 (CPU) slot, 12" max card length
M.2 Card Slot (wireless)
Killer™ Wi-Fi 6E AX1690i
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe)
I/O Specifications
# of USB Ports
11
USB Configuration

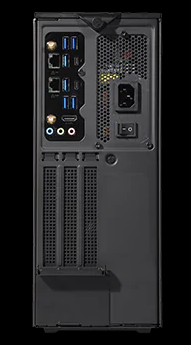

Rear: 6x USB 3.2g2, 2x TB4 (USB4); Front: 2x USB 3.2g1 Type-A, USB 3.2g2x2 Type-C
USB Revision
3.2 Gen1, Gen2, Gen2x2, USB4
Total # of SATA Ports
4
Max # of SATA 6.0 Gb/s Ports
4
RAID Configuration
RAID-0 or RAID-1
Audio (back channel + front channel)
(R) 7.1 digital, 3x 3.5mm + (F) 3.5mm
Integrated LAN
10GbE (AQC113) + Intel® i226-V
Integrated Wireless‡
Intel® Killer(tm) Wi-Fi 6E AX1690 (i/s)
Integrated Bluetooth
Yes
Additional Headers
FRONT_PANEL
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
Package Specifications

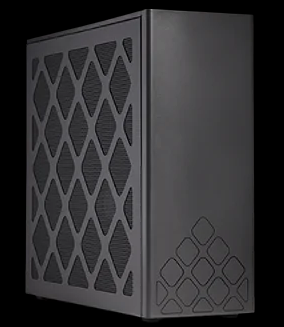

Chassis Dimensions
337 x 318 x 129mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® Rapid Storage Technology
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Security & Reliability
Intel® AES New Instructions
Yes
