Essentials
Download Specifications
Product Collection

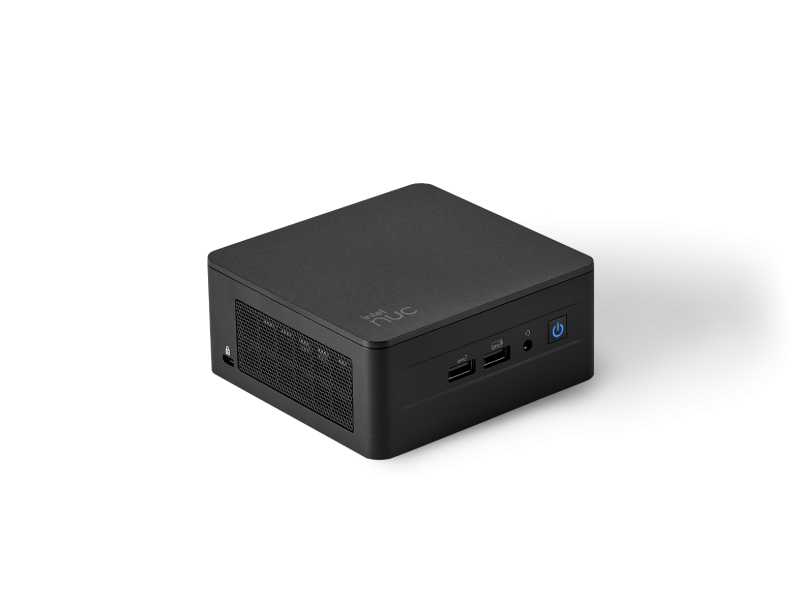

Intel® NUC Kit with 13th Generation Intel® Core™ Processors
Code Name
Products formerly Arena Canyon
Processor Included
Intel® Core™ i5-1340P Processor (12M Cache, up to 4.60 GHz)
Board Number
NUC13ANBi5
Supported Operating Systems
Windows 11 Home*, Windows 11 Pro*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu*
Supplemental Information
Marketing Status
Launched
Launch Date
Q1'23
Expected Discontinuance
1H'26
Included Items
VESA bracket
CPU Specifications
Total Cores
12
Total Threads
16
Max Turbo Frequency
4.60 GHz
Memory & Storage
Max Memory Size (dependent on memory type)
64 GB
# of Memory Slots
2
Memory Types
DDR4-3200 1.2V SODIMMs
Max # of Memory Channels
2
ECC Memory Supported ‡
No
Internal Drive Form Factor
M.2 and 2.5" Drive
# of Internal Drives Supported
3
M.2 Card Slot (storage)
22x80 NVMe (M); 22x42 SATA (B)
I/O Specifications
Graphics Output
2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C
# of Displays Supported ‡
4
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
# of USB Ports
4

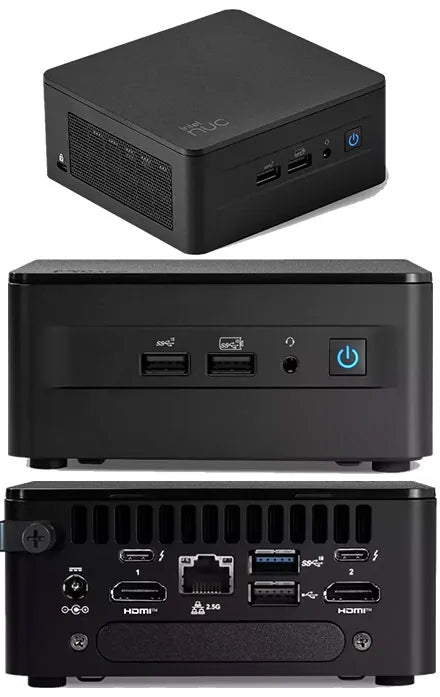

USB Configuration
Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Total # of SATA Ports
1
Serial Port via Internal Header
No
Audio (back channel + front channel)
Front panel: 3.5mm headphone/mic jack
Integrated LAN
Intel® Ethernet Controller i226-V
Wireless Included
Intel® Wi-Fi 6E AX211 (Gig+)
Bluetooth Version
5.3
M.2 Card Slot (wireless)
22x30 (E)
Additional Headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Expansion Options
PCI Express Revision
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
Package Specifications
DC Input Voltage Supported
12-20 VDC
Chassis Dimensions
117 x 112 x 54 [mm] (LxWxH)
Board Form Factor
UCFF (4" x 4")
Advanced Technologies
Intel® HD Audio Technology
Yes
Intel® Optane™ Memory Supported ‡
No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Security & Reliability
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel® ME Firmware Version
16.1
Intel® AES New Instructions
Yes
