所有規格
BASIC
-
Size(Inch)
23.8
-
Panel Type
IPS
-
Color Gamut (CIE1931)
NTSC 72%
-
Color Depth(Number of Colors)
10bit(8bit + A-FRC)
-
Aspect Ratio
16:9
-
Resolution
3840x2160
-
Brightness(Typ.)
Typical 250nits, Min 200nits
-
Contrast Ratio (DFC)
Mega, On/Off
-
Response Time (GTG)
5ms (High)
-
Viewing Angle(CR≥10)
178/178 (CR≥10)
-
Surface Treatment(Glare/non-Glare)
Anti-Glare 3H
SIGNAL INPUT
-
HDMI
2 (ver 2.0)
-
- H-Frequency
30kHz ~ 135kHz
-
- V-Frequency
56Hz ~ 61Hz
-
- Resolution - PC
3840x2160@60Hz
-
- Resolution - Video
3840x2160@60Hz (Ver 2.0)
-
Display Port
1 (ver 1.2)
-
- FreeSync V-Frequency Range
40~60Hz
-

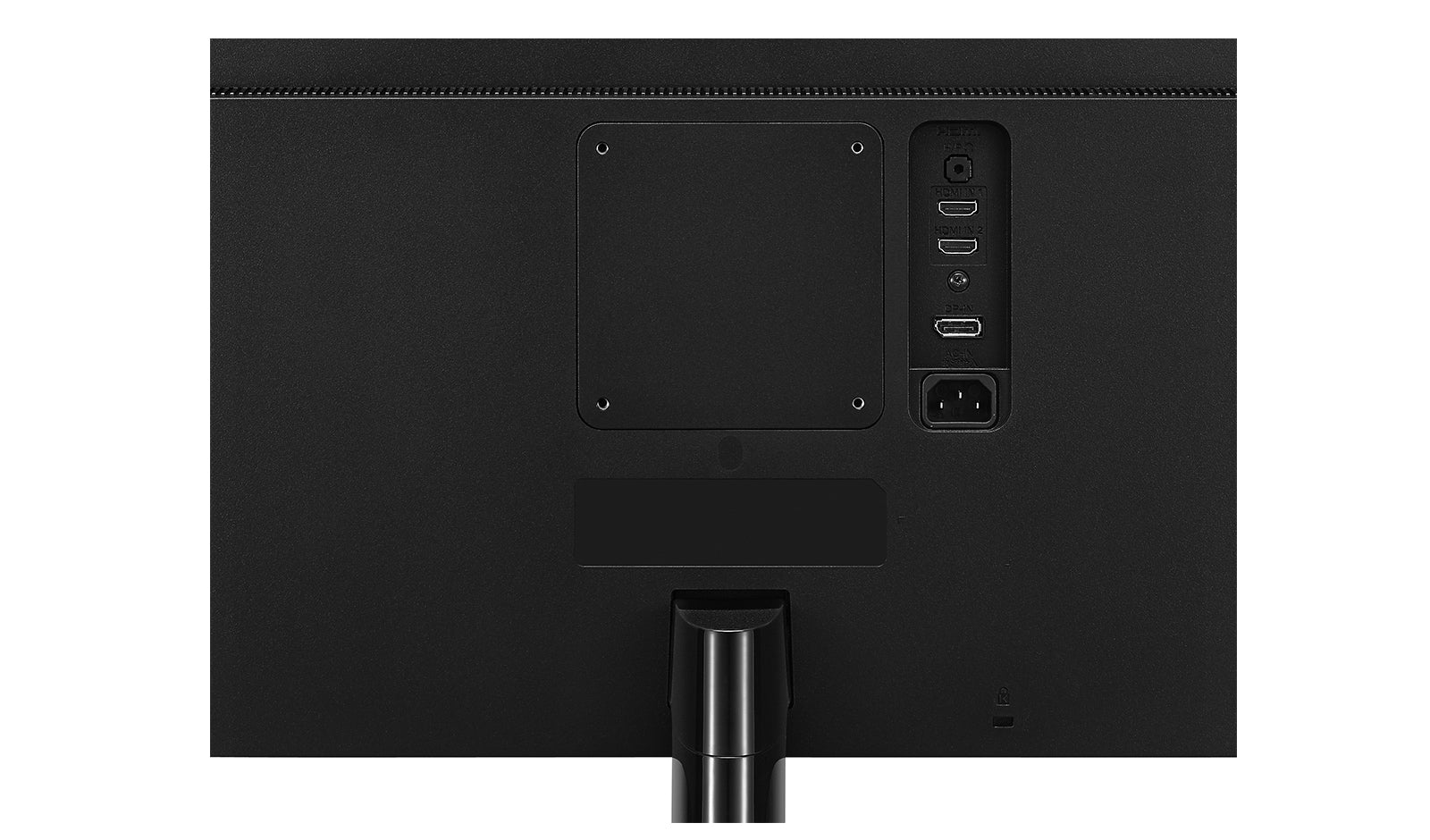

[ Jack Location ]
Rear
AUDIO OUTPUT
-
Headphone Out
Yes
-
[ Jack Location ]
Rear
POWER
-
Input
100~240Vac, 50/60Hz
POWER CONSUMPTION
-
Normal On(Typ.)
35W
-
Normal On
23W
-
Power Save/Sleep Mode(Max)
0.5W
-
DC Off(Max)
0.3W
CONTROL KEY
-
Key Number (Power Key Included)
1 Joystick
-
Key Type
Joystick
-
[Key Location]
Front
LANGUANGE
-
Country
English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean
-
Number of Language
17
SPECIAL FEATURE
-
DDC/CI
Yes
-
HDCP
Yes (2.2)
-
Reader Mode
Yes
-
Flicker safe
Yes
-
Six Axis Control
Yes
-
Factory Calibrated
Yes
-
Plug & Play
Yes
-
On Screen Control
Yes
-
SUPER+ Resolution
Yes
-
Black Equalizer
Yes
-
DAS Mode
Yes
-
FreeSync
Yes
-
Dual controller
Yes
DESIGN - COLOR
-
Front
High Glossy (Front Face), Texture (Side Face)
-
Back Cover
Matt Black
-
Stand
Glossy Black
-
Base
Glossy Black
DESIGN - STAND
-
Base Detchable
Yes
-

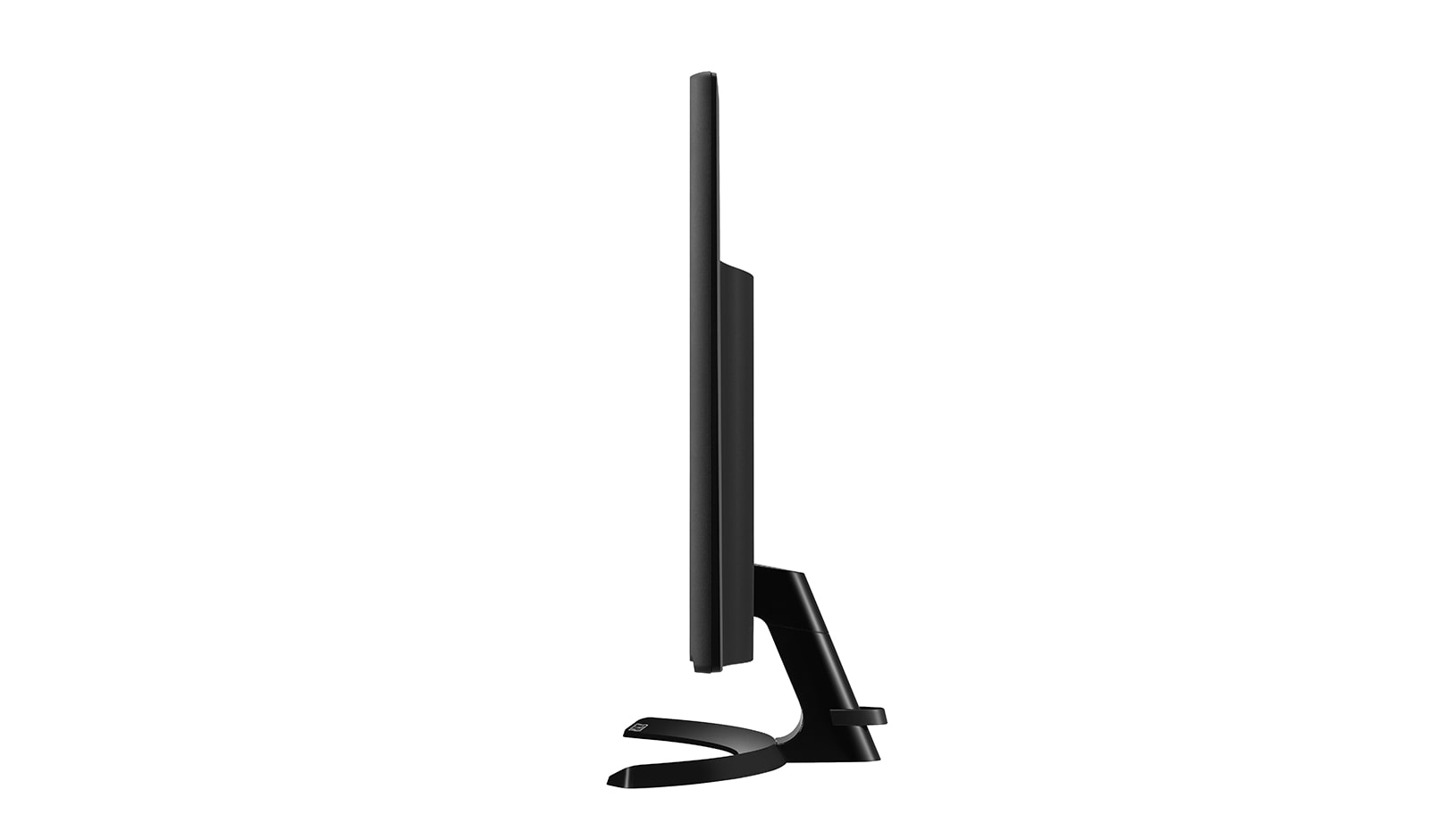

Tilt(Angle)
Yes (-2~20)
DIMENSION(W*D*H)(MM)
-
Set (with Stand)
553.7 x 202.2 x 420.5
-
Set (without Stand)
553.7 x 60.8 x 333
-
Wall Mount
100mm x 100mm
WEIGHT(KG)
-
Set (with Stand)
4
-
Set (without Stand)
3.4
STANDARD
-
TCO7.0
Yes
-
UL(cUL)
Yes
-
TUV-Type
Yes
-
EPEAT Gold
Yes
-
CB
Yes
-
FCC-B, CE
Yes
-
CCC, BSMI
Yes
-
KC
Yes
-
VCCI
Yes
-
Erp
Yes
-
ROHS, REACH
Yes
-
Windows 10
Yes
-
HDMI
Yes
-
FreeSync
Yes
ACCESSORY
-
Power Cord
Yes
-
Easy Setup Guide
Yes
-
Calibration Report(Paper)
Yes
-
Software Install CD
Yes (OnScreen Control, Dual Controller)
-
Cable Holder
Yes
逼真視覺享受
畫面無失真讓您能全情投入遊戲世界。
