Model
描述
790S7 Mini-ITX
CPU
AMD Ryzen™ 9 7940HX
(16 cores/32 threads)
GPU
AMD Radeon" 610M
PCle Expansion Slot
PCle5.0 x16
Memory
DDR5 Dual channel (SODlMM Slotsx2 ,up to 5200 MT/s, Max 64GB
Storage
M.2 2280 PCle4.0 SSD Slots x2
Video Output
HDMI2.1 x1(4K@120hz/8K@60Hz)
DP 1.4 x1(4K@144Hz)
USB3.2 x1(4K@240Hz/8K@60Hz)
Audio Output
HDMI x1 ; DP x1 ; Audio Jack x1

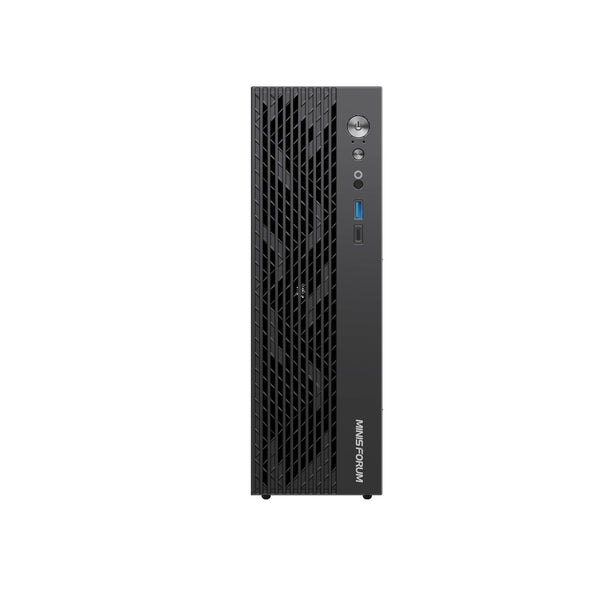

IO(Front)
Audio Jack x1
l0(Front)
USB2.0 Type-C Port x1
USB A 3.2 Gen1 x1 (5Gbps)
Power button x1
Reset button x1

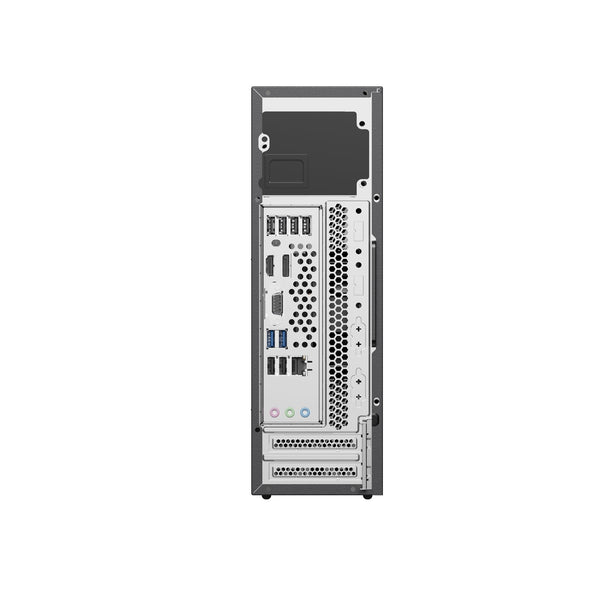

IO(Rear)
HDMI 2.1x1
DP 1.4x1
USB3.2 Gen2 Type-C Port x1 (Alt DP)
USB3.2 Gen1 Type-A Port x2
USB2.0 Type-A Port x2
LINE IN x1
LINE OUT x1
MIC IN x1
HDMI1.4(4096x2160@30Hz)
DP1.4(4096x2160@60Hz)
VGA(1920x1080@60Hz)
USB 3.2 Gen1Type A x2 (5Gbps)
USB 2.0 Type A x6
LINE IN x1
LINE OUT x1
MIC IN x1
Dimension
11.73 x 8.86 x 3.74 inches
Power
400W
System
Windows 11

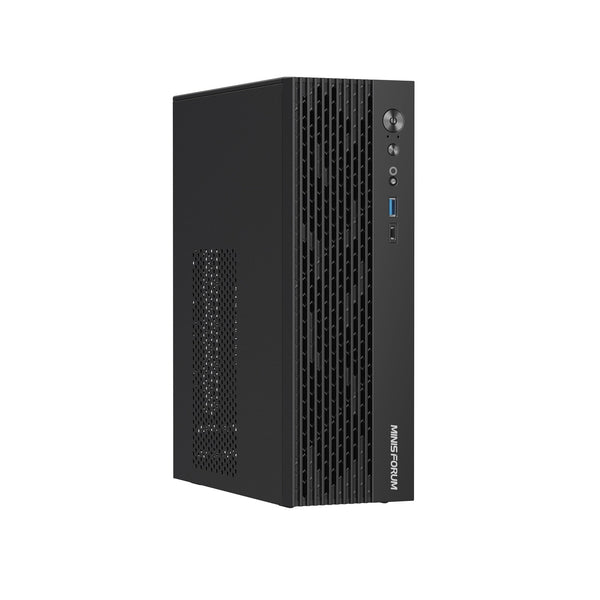

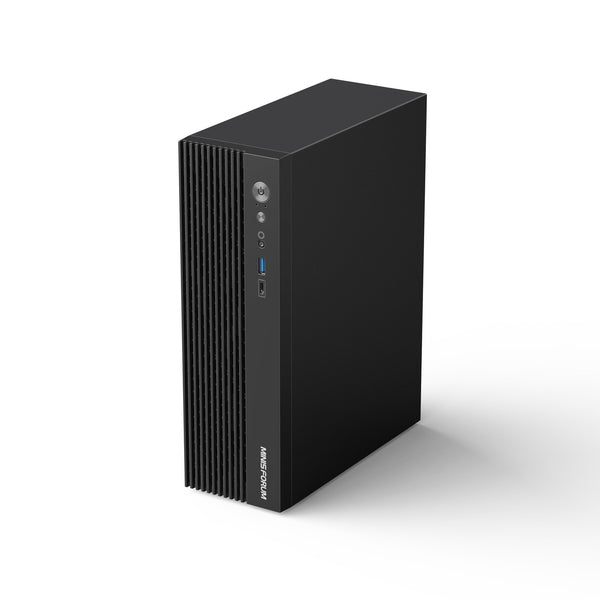

7L Small Footprint
The compact 7L design takes center stage, paired with a timeless design philosophy. The classic carbon black minimalist style creates a sleek yet professional appearance, ideal for business and entertainment.
Ultimate Powerhouse
for Content Creators
The 790S7 is a content creator’s dream machine, powered by the AMD Ryzen™ 9 7940HX. With 16 cores and 32 threads, it delivers lightning-fast speeds up to 5.2GHz, giving you all the performance you need to unlock your full potential for tasks like video editing and seamless multitasking.
Expand Low-profile Graphics Card
Powered by the AMD Radeon™ 610M, it offers reliable performance and smooth operation, efficiently handling all your computing and multimedia tasks. Plus, it supports internal installation of a low-profile dedicated graphics card, such as the Gigabyte RTX 4060 OC-8GL, further enhancing graphics processing capability
Note: Dedicated graphics card not included.
Unleash Your Potential
With up to 64GB of memory, typically found in high-end workstations, this ultra-fast 5200 MHz RAM makes multitasking and multimedia rendering a breeze. Effortlessly switch between tasks like gaming, streaming, and web browsing, all with smooth, high-speed performance.
Lightning-Fast NVMe® SSD
Enjoy lightning-fast load times with the speedy NVMe® SSD, allowing games and apps to launch faster than ever. Spend less time waiting and more time playing. With up to 4TB of PCIe® storage, you can take your games on the go and easily upgrade as your library expands.
400W Performance at 7L Design
The 790S7 delivers impressive power with a power of 400W, all packed into a compact 7L size. Compared to traditional towers with over 650W power and 35L volume, 790S7 offers outstanding power efficiency in a significantly smaller size, making it ideal for those who need performance without bulk.
Triple-screen Display
The 790S7 enhances multitasking with its high-speed USB 3.2, HDMI 2.1, and DP 1.4 ports. Easily connect up to three 4K displays to maximize your workflow and increase productivity.
Effortless Connectivity
The 790S7 offers all the ports you need for smooth device connectivity. Easily connect your monitor, mouse, keyboard, speakers, headphones, or even an external desktop graphics card with no hassle.
Fits All Your Need
The 790S7 blends a compact design with powerful performance and reliability, providing excellent manageability, AI readiness, and customization options. It's an ideal solution for modern business applications, competitive gaming, edge computing, and IoT environments.
