描述
Size
140x140x25 mm
Mounting hole spacing
124,5x124,5 mm
4-pin PWM
Cable length
40cm
Bearing
Blade geometry
A-Series with Flow Acceleration Channels

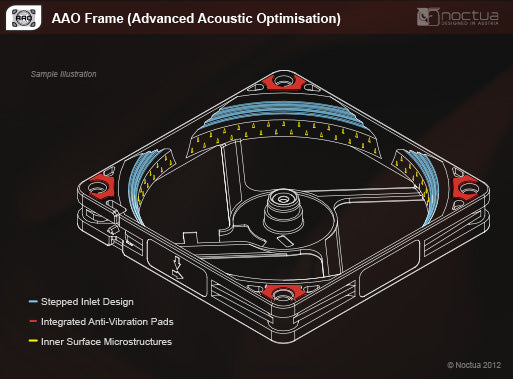

Frame technology
Material
Fibre-glass reinforced polyamide
Ingress protection
IP52

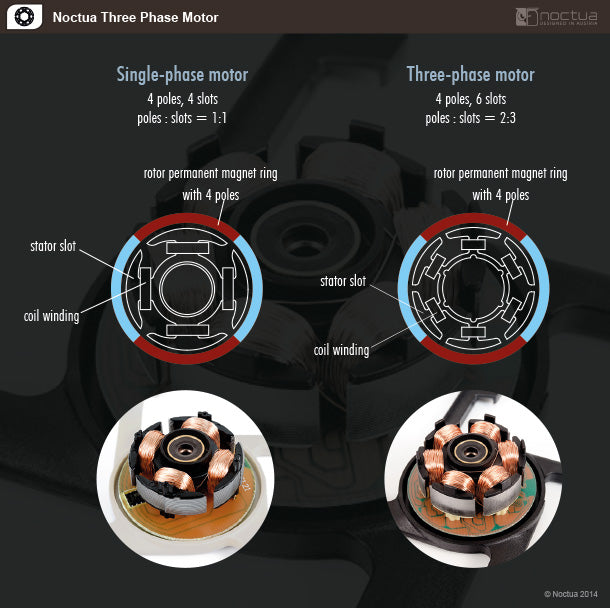

Motor type
Rotational speed (+/- 10%)
3000 RPM
Min. rotational speed (PWM, +/-20%)
800 RPM
Acoustical noise
41,3 dB(A)
Static pressure
10,52 mm H₂O
Max. input power
6,6 W
Max. input current
0,55 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
- Fan
- 4 Fan Screws
6 years
