描述
|
|
|
Size
120x120x25 mm
|
|
|
Mounting hole spacing
105x105 mm
|
|
|
4-pin PWM
|
|
|
Cable length
20cm + 30cm NA-EC1 extension cable
|
|
|
Bearing
|
|
|
Blade geometry
Heptaperf™
|
|
|
Frame technology
|
|
|
Rotational speed (+/- 10%)
1500 RPM
|
|
|
Rotational speed with L.N.A. (+/- 10%)
1200 RPM
|
|
|
Min. rotational speed (PWM, +/-20%)
300 RPM
|
|
|
74,3 m³/h
|
|
|
Acoustical noise
22,4 dB(A)
|
|
|
Acoustical noise with L.N.A.
18,6 dB(A)
|
|
|
Static pressure
2,61 mm H₂O
|
|
|
Static pressure with L.N.A.
1,83 mm H₂O
|
|
|
Max. input power
0,6 W
|
|
|
Max. input current
0,05 A
|
|
|
Operating voltage
12 V
|
|
|
MTTF
> 150.000 h
|
|
|

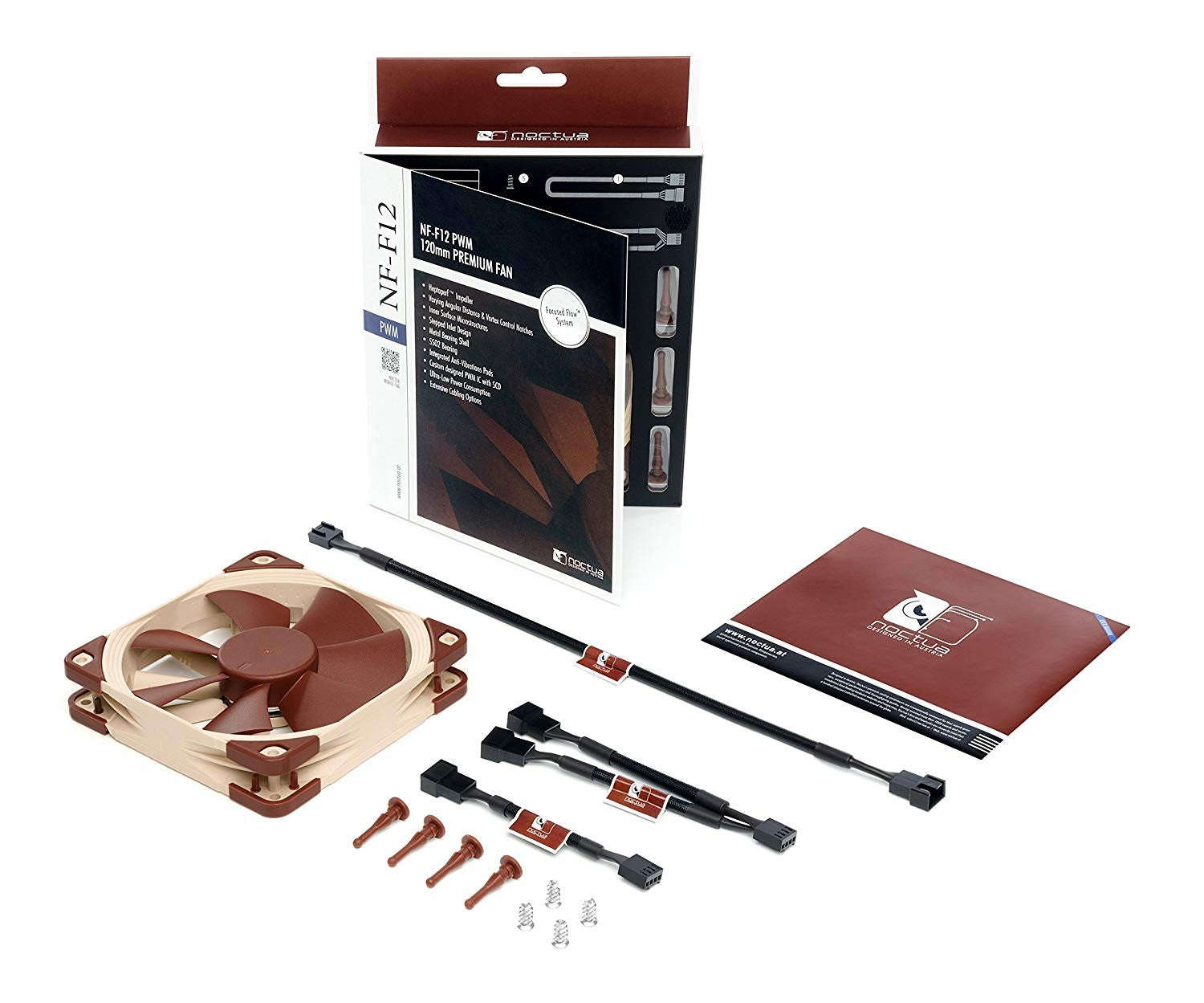

Scope of delivery
|
|
|
6 years
|
