Cooler Specification
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4, AM5
Height (without fan)
158 mm
Width (without fan)
125 mm
Depth (without fan)
45 mm
Height (with fan)
158 mm
Width (with fan)
125 mm
Depth (with fan)
71 mm
Weight (with fan)
710 g
Material
Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)
129
Max. TDP
see NSPR
Fan compatibility
120x120x25

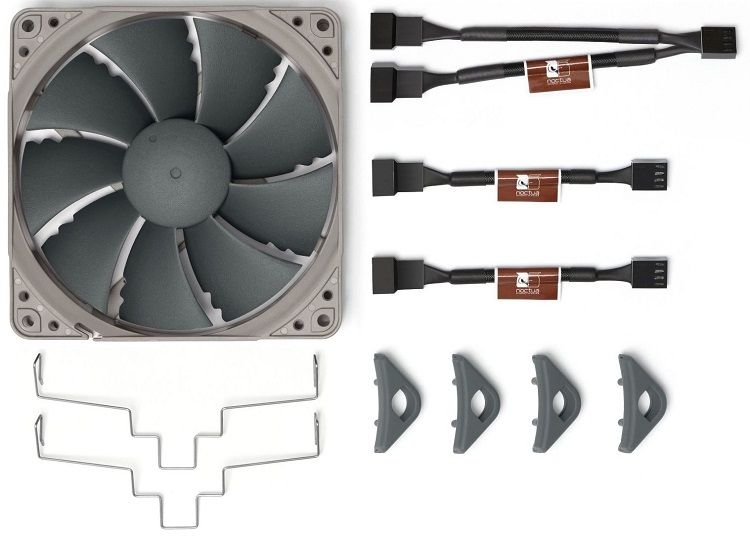

Scope of delivery
- NH-U12S redux heatsink
- NF-P12 redux-1700 PWM fan
- 4x NA-AVP1 chromax.grey anti-vibration pads
- Fan mounting clips (one pair)
- NT-H1 high-grade thermal compound (pre-applied)
- SecuFirm2™ mounting kit
6 Years
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
1700 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450 RPM
120,2 m³/h
Max. acoustical noise
25,1 dB(A)
Voltage range
12 V
MTTF
> 150.000 h
