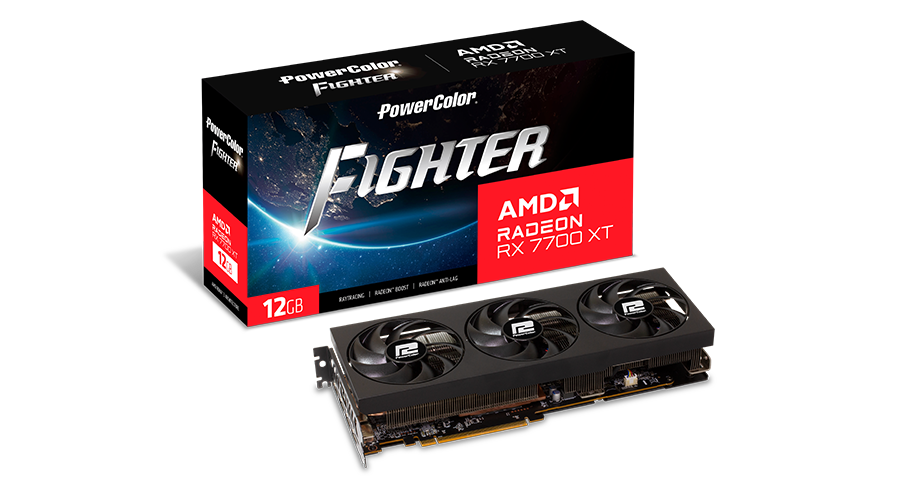

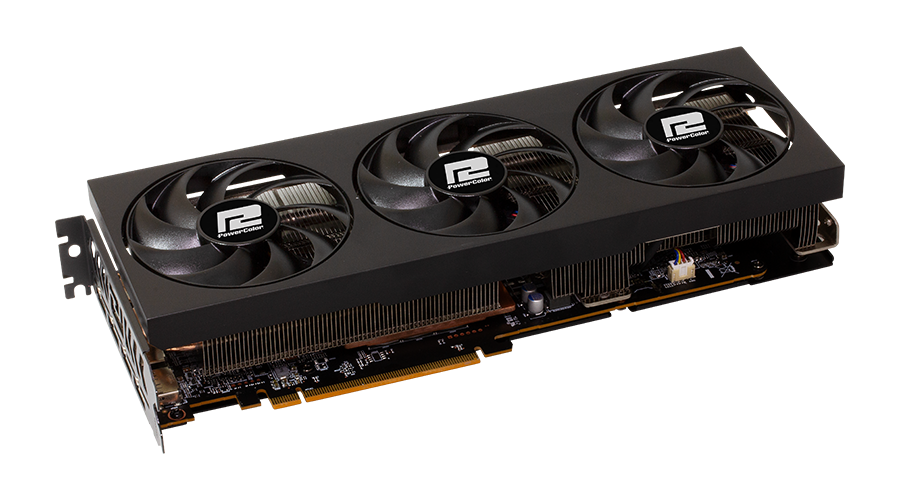

Fighter AMD Radeon™ RX 7700 XT 12GB GDDR6
RADEON™ RX 7700 XT
RX 7700 XT 12G-F/OC
描述
-
-
-
-
-
-
-
-
-
-
-
-
-
提升效能。
提供最高保真度 - AMD FidelityFX™ 超級解析度技術將升級技術提高到更高水準。在支援的遊戲中提供難以置信的圖像品質，同時提高畫面刷新率。AMD Radeon™ 超級解析度 (RSR) 在驅動程式級別利用 FSR 技術，在數千款遊戲中為您提供升級的效能。
.png)
-
產品特色
 Optimized for Windows 11AMD Radeon™ RX 7000 Series Graphics power the ultimate Windows 11 gaming experience with optimized support for DirectX® 12 Ultimate, AutoHDR, and DirectStorage.
|
 AMD RDNA™ 3 Architecture with Hardware RaytracingThe AMD RDNA™ 3 architecture features industry-advancing chiplet technology to deliver next-generation performance, visuals, and power efficiency. Discover new levels of performance with advanced AMD RDNA™ 3 compute units, featuring redesigned raytracing accelerators for incredible performance while improving image quality.
|
 AMD FreeSync™ TechnologyTake full advantage of the AMD Radeon™ RX 7000 Series graphics cards by pairing with a certified AMD FreeSync™ technology-enabled monitor to enable an exceptional stutter and tear-free gaming experience with high refresh rates, low latency, and stunning HDR.
|
 Radeon™ Anti-LagLess lag equals more wins. Radeon Anti-Lag reduces latency, providing ultra-fast response time giving you a dynamic edge over your competition.
|
 Radeon™ BoostRadeon Boost delivers extra performance and improves game smoothness when fast on-screen character motion is detected via user input.
|
 AMD FidelityFX™ Super Resolution 3 technologyAMD FidelityFX™ Super Resolution 3 (AMD FSR 3) is the synergy of next-level AMD temporal upscaling technology and AMD Fluid Motion Frames interpolation technology designed to deliver massive performance boosts with incredible image quality in supported games.
|
本文提供的全部訊息僅供參考。 PowerColor 保留隨時修改或更改內容的權利，恕不另行通知。
產品規格
| 顯示晶片 | RX 7700 XT 12G-F/OC |
| 記憶體 | 12GB GDDR6 |
| 流處理器 | 3456 Units |
| GPU核心時脈(OC) | up to 2226MHz(Game)¹ up to 2584MHz(Boost)² |
| 記憶體速度 | 18.0 Gbps |
| 記憶體介面 | 192-bit |
| DirectX® 支援 | 12 |
| 介面規格 | PCIE 4.0 |

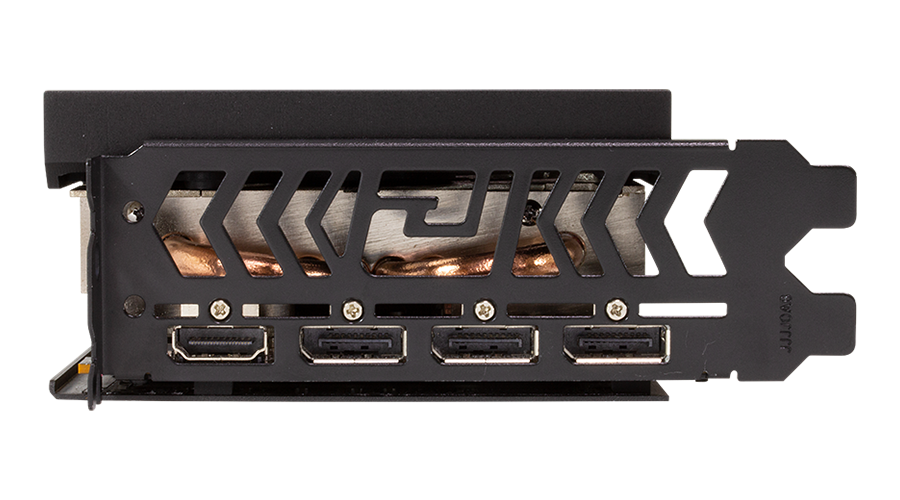

| 輸出介面 | 1 x HDMI 2.1，3 x DisplayPort 2.1 (only 2x simultaneous DP2.1 connections can be supported) |
| 客製化或特殊規格 |
Feature Support
| OpenGL | Support |
| AMD Stream 技術 | Support |
| AMD Eyefinity 技術 | Support |
| AMD Smart Access Memory 技術 | Support |
| 更多資訊，請參閱 AMD 官方網站 |
最高解析度
| VGA | |
| DVI | |
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
電源 / 顯卡尺寸
| 顯卡尺寸 | 290mm*111mm*50mm 303mm*128mm*50mm(with bracket) |
| 最低電源供應 (W) | 750W³ |
| 電源接口 | Two 8-pin PCI Express Power connectors |
備註
| ¹Game Clock(遊戲時脈) 是泛指一般遊戲應用時的GPU時脈, TGP (Total Graphics Power) 則會因為執行不同的遊戲而有所差異。 ²Boost Clock是在GPU重載時能跑出的最高頻率，然而，是否能達到此頻率或是能持續多久時間，則會依據幾個因素而有所影響，例如: 散熱狀態，軟體的應用或是負載狀態。 ³AMD Radeon RX 7700 XT 顯示卡的建議電源在使用 12V 輸出功率 > 62A 時，至少為 750W 或更大。系統電源的建議最低瓦數是以配置 AMD Ryzen 9 7950X 處理器，加上其他系統元件之一般電力需求的電腦為基準。您的系統需求可能會有所不同。 |
