描述
Intel
Form Factor
ATX12V
ATX 3.0
Yes
產品尺寸
180 x 150 x 86 mm
轉換功耗
80Plus Gold
多重技術保護
OPP/OVP/SCP/OCP/OTP
環保認證
ROHS
輸入電壓(AC)
100-240Vac
輸出電壓(DC)
+3.3V +5V +12V -12V +5Vsb
最大負載
22A 22A 83.3A 0.3A 3A
Combined Load
120W 120W 996.6W 3.6W 15W
總功耗
1000W

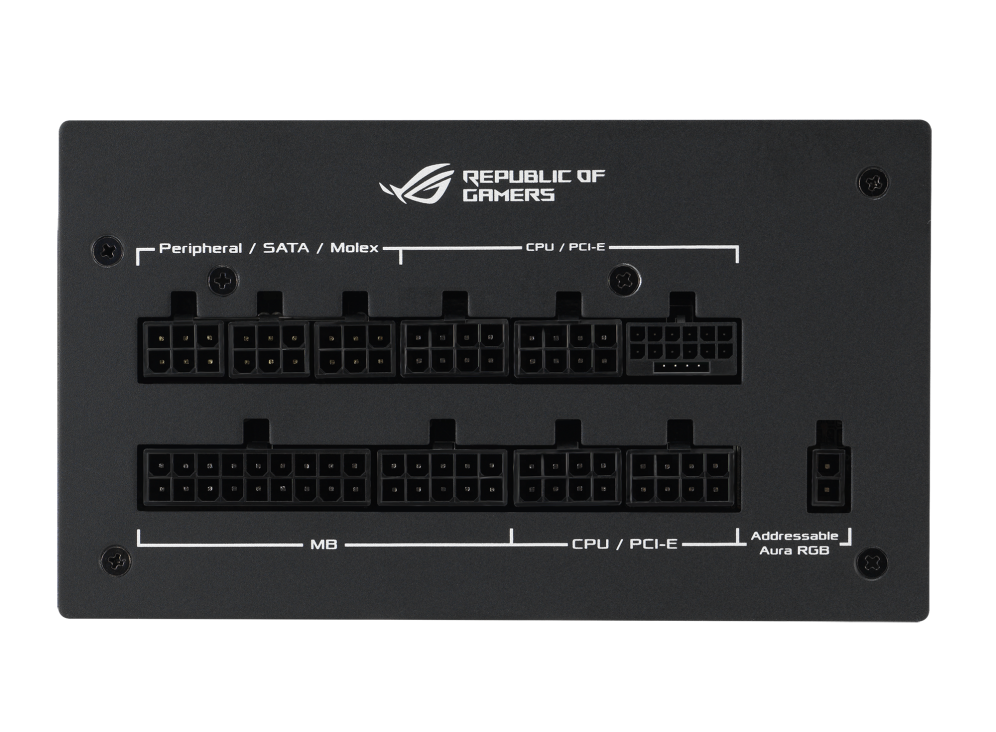

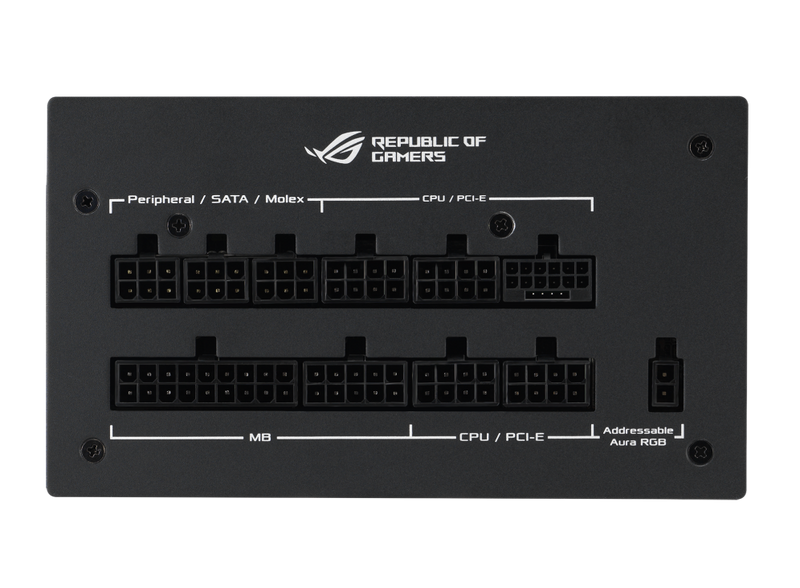

連接埠
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4

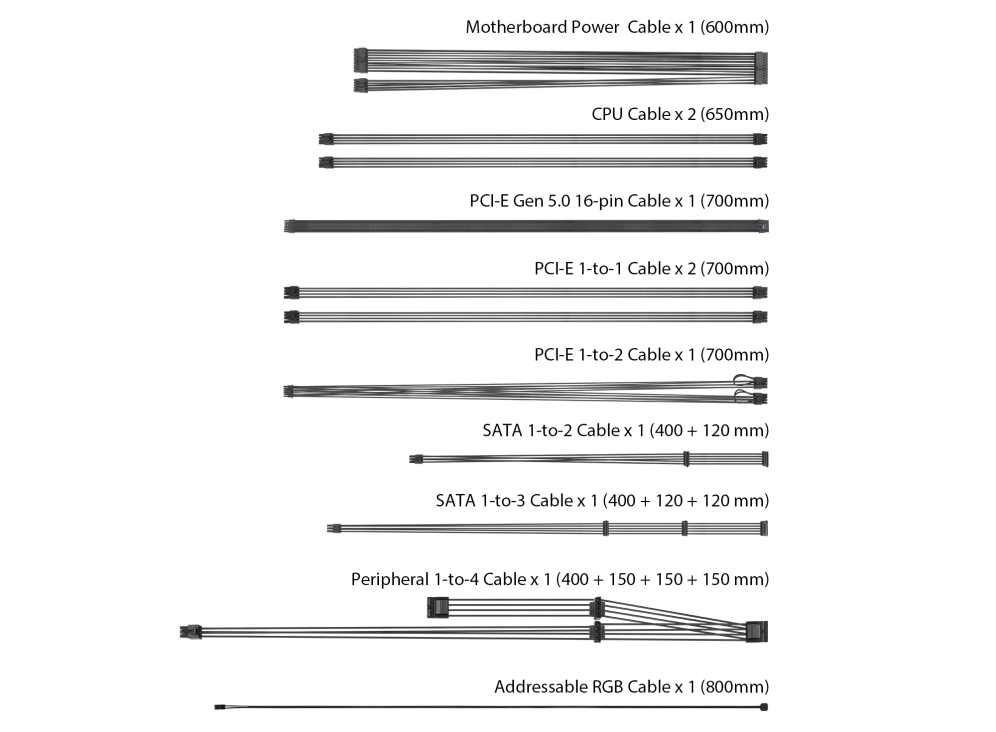

包裝內容
Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (700mm) PCI-E 1-to-1 Cable x 2 (700mm) PCI-E 1-to-2 Cable x 1 (700mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1
Weight
3.03 kg (single PSU)

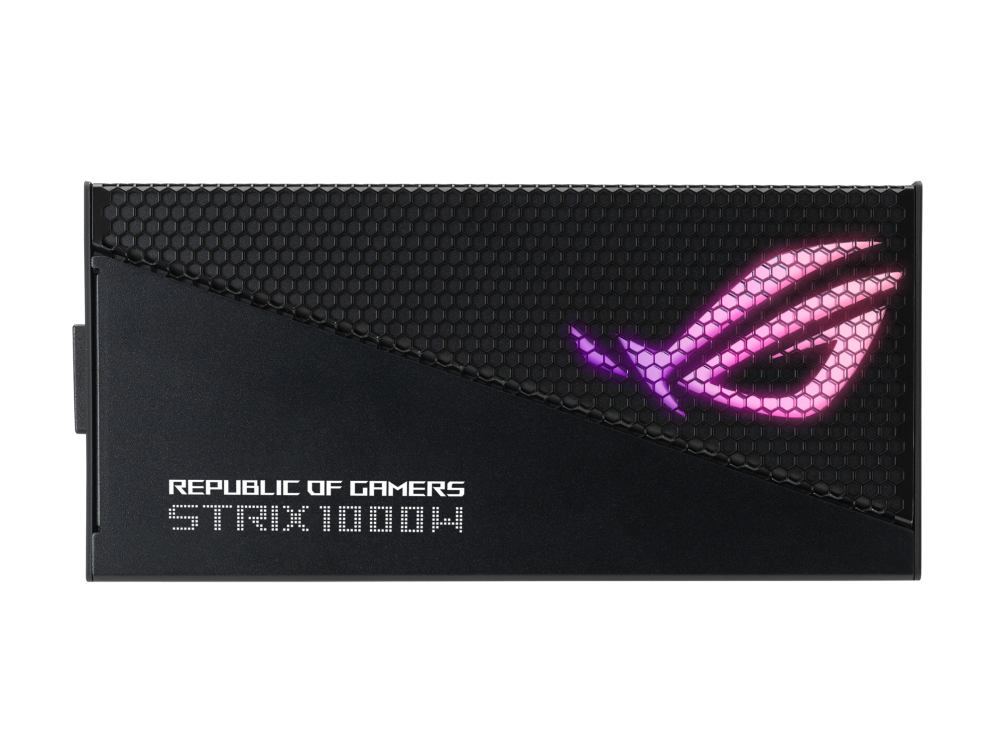

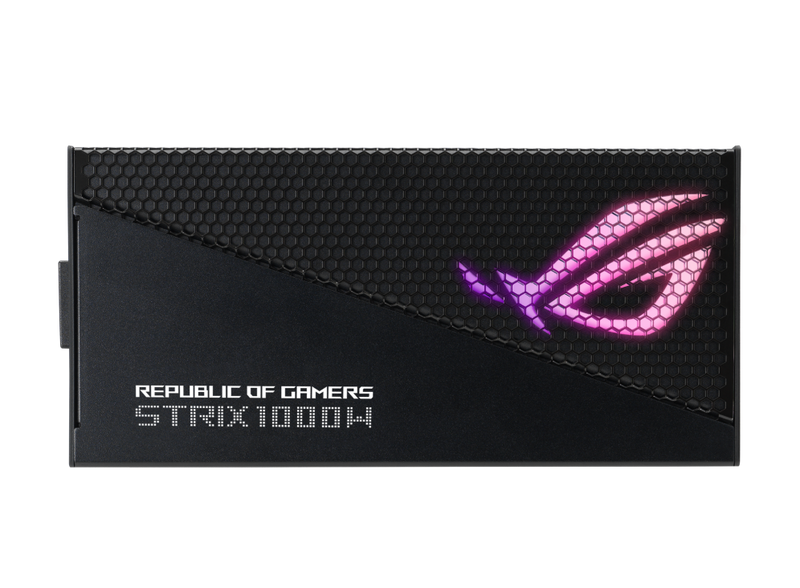

AURA SYNC
ARGB

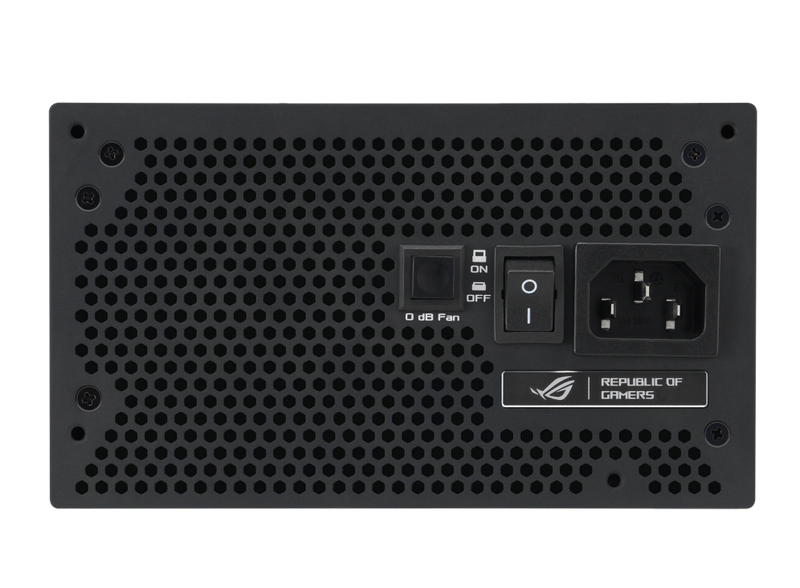

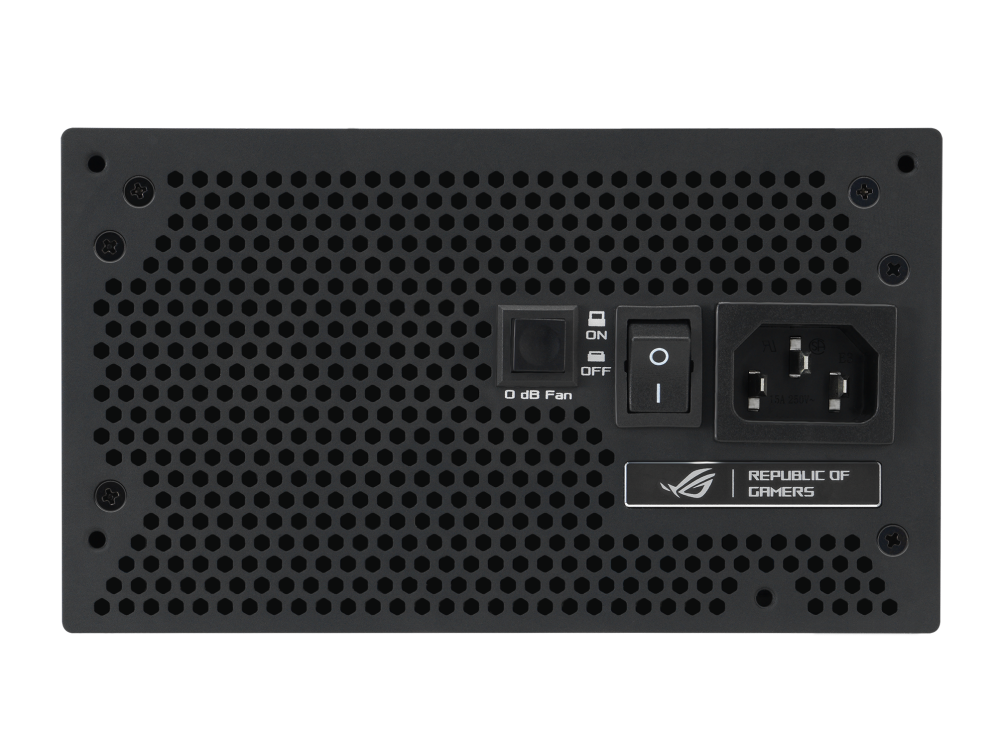

0dB Fan Button
No
Cybenetics Noise Level Certification
A+
