描述

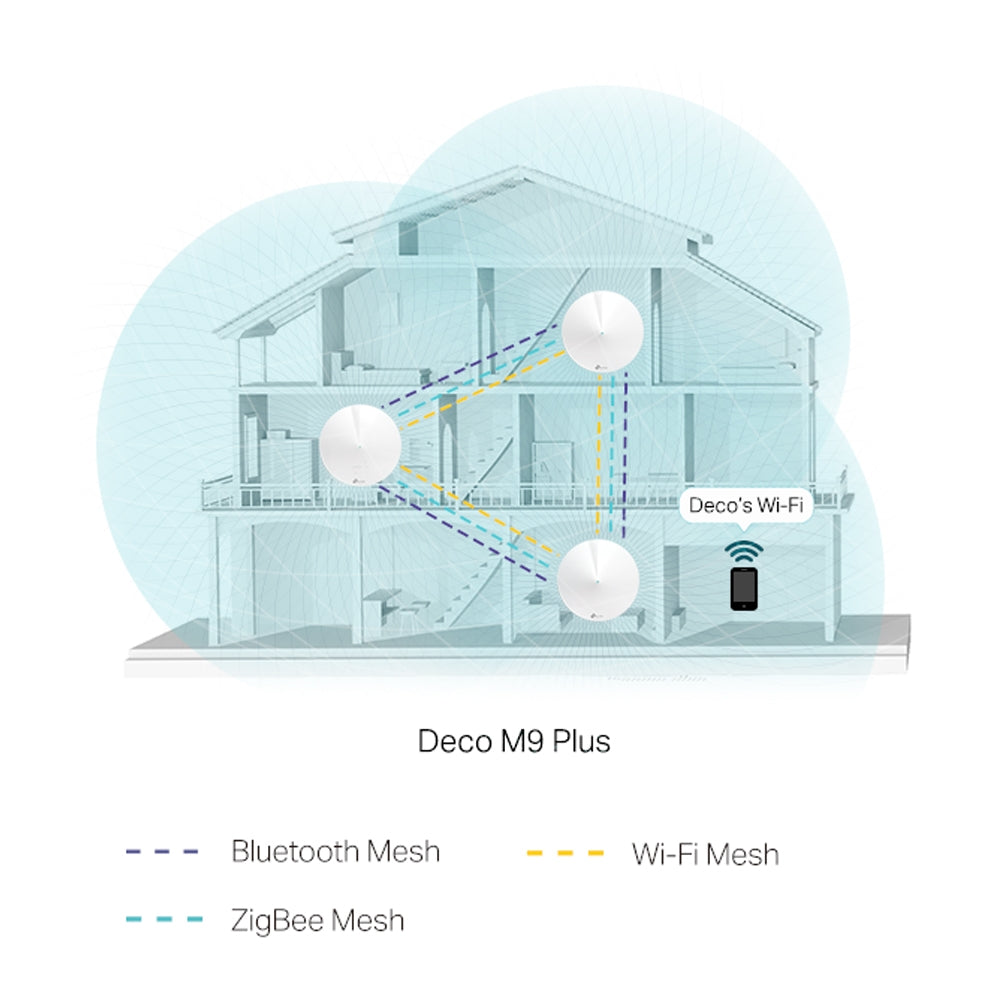

- Seamless Coverage: Achieve seamless whole-home coverage with a mesh Wi-Fi system and eliminate weak signal areas once and for all.
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
- Broad Coverage: Enjoy Wi-Fi coverage up to 6,500 square feet with just 3 Deco M9 Plus units and expand it by just adding more Decos.
- Fast Connections: Three separate wireless bands up to 2134 Mbps with a dynamic backhaul up to 1.5 Gbps ensure stable, high-speed connections wherever you are in your home.
- Seamless Management: Deco M9 Plus acts as a hub for your wireless and smart home devices.
- Connect Multiple Devices: Deco handles traffic from even the busiest networks, providing lag-free connection for over 100 devices.
- Total Security: HomeCareTM provides personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS)* to ensure a safer online experience.
- Setup Made Easier Than Ever: The Deco app walks you through setup—step by step.
| POWER | |
|---|---|
| AC adapter input | 100-240V ~ 50/60Hz 0.8A |
| AC adapter output | 12V ⎓ 2A |
| HARDWARE FEATURES | |
|---|---|

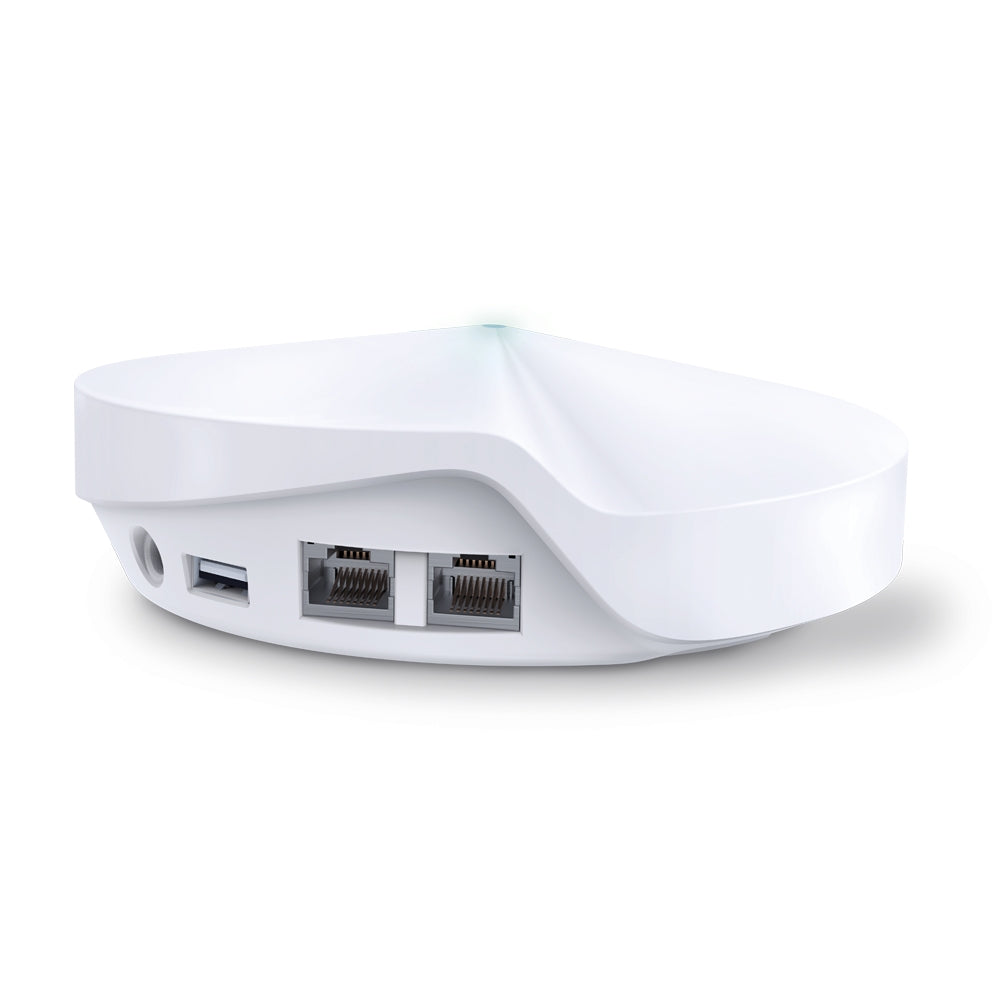

| Ports | 2 * LAN/WAN Gigabit Ethernet Ports 1 * USB 2.0 Port (reserved) 1 * Power Port |
| Button | 1 Reset button on the underside |
| External Power Supply | 12 V/2 A |
| Dimensions | Φ5.7 in. x 1.8 in. (Φ144 mm × 46 mm) |
| Antenna Type | 8 internal antennas per Deco unit |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11 ac/n/a 5 GHz IEEE 802.11 b/g/n 2.4 GHz Bluetooth 4.2 ZigBee HA1.2 |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 867 Mbps at 5 GHz (1) 867 Mbps at 5 GHz (2) 400 Mbps at 2.4 GHz |
| Transmit Power | FCC: CE: |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Advanced Functions | ● Router/ Access Point Mode ● Optional Ethernet Backhaul ● TP-Link Mesh Technology: MU-MIMO Auto Path Selection Self-Healing AP Steering Band Steering Beamforming |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM |
| WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Local Management, Remote Management |
| DHCP | Server, Client |
| Firewall Security | SPI Firewall |
| Protocols | Supports IPv4 and IPv6 |
| Advanced Features | Parental Controls 3-Year Free Built-In Antivirus QoS (Quality of Service) Reporting Assisted Setup Works with Alexa & IFTTT Automation (for smart home devices) |
| Guest Network | 2.4 GHz guest network * 1 5 GHz guest network * 1 |
| OTHERS | |
|---|---|
| Package Contents | ●Deco M9 Plus (3-pack): 3 Deco units 1 RJ45 Ethernet Cable 3 Power Adapters ●Deco M9 Plus (2-pack): 2 Deco units 1 RJ45 Ethernet Cable 2 Power Adapters ●Deco M9 Plus (1-pack): 1 Deco unit 1 RJ45 Ethernet Cable 1 Power Adapter |
| Smartphone/Tablet Requirements | iOS 9.0 or later Android 4.4 or later Bluetooth 4.0 or later |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
