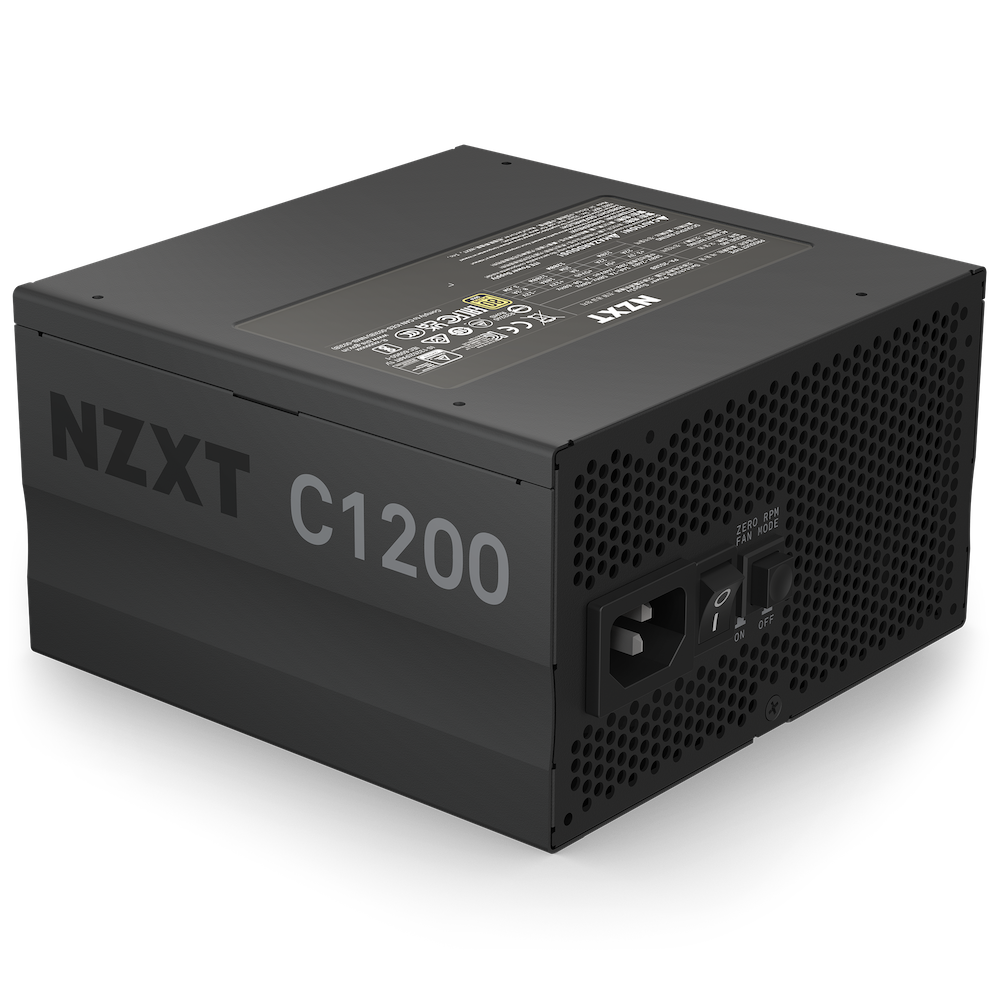

NZXT C Series C1200 1200W ATX Modular 80 PLUS GOLD 主机电源

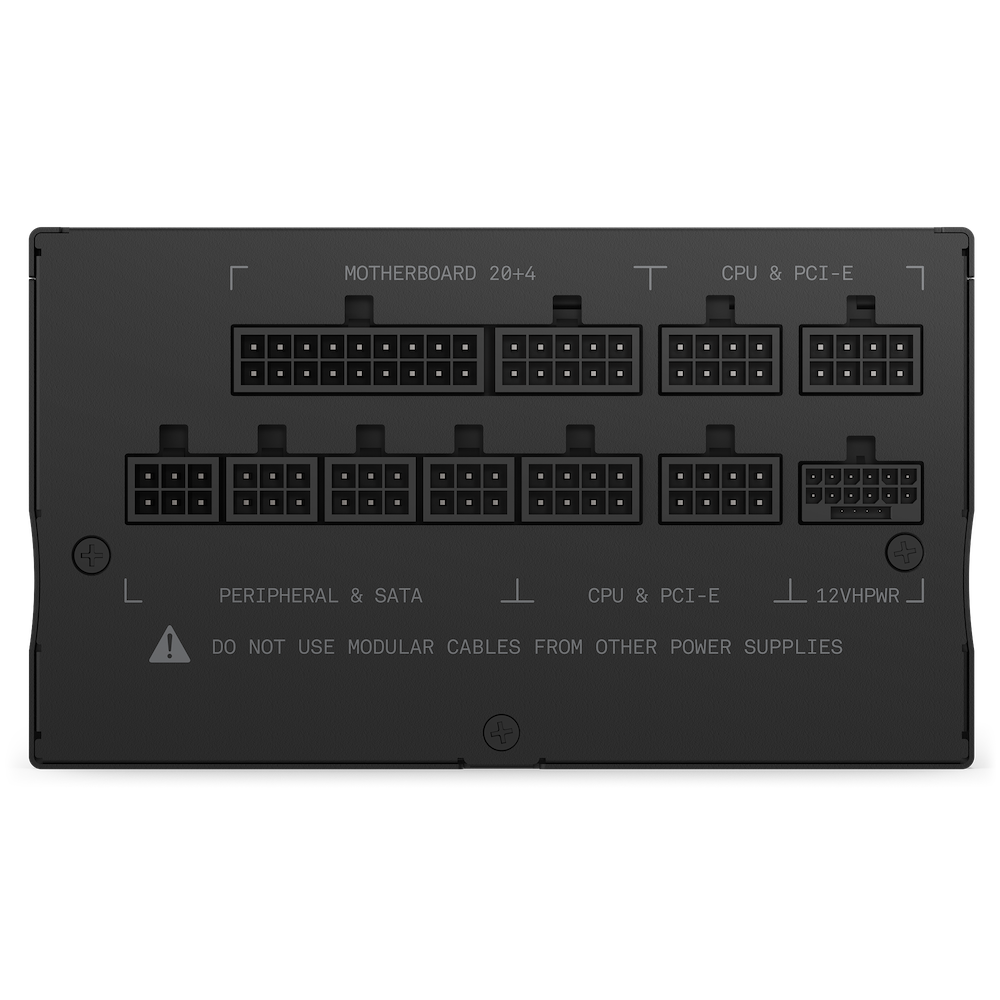

OUTPUT CONNECTORS

• 24-pin ATX power: 1

• 4+4-pin CPU power: 1

• 8-pin CPU Cable : 1

• 6+2-pin PCIe power : 2

• 16-pin (12+4) 12VHPWR PCIe Cable: 1

• SATA power : 8

• Peripherals : 4

CABLE SPECS

• 24-pin ATX power: 600 mm, Nylon sleeving

• 4+4-pin CPU power: 700 mm, Nylon sleeving

• 8-Pin CPU Power Cable: 700mm, Nylon sleeving

• 6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving

• 16-Pin (12+4) 12VHPWR PCIe Cable: 650mm, Nylon sleeving

• SATA power: 500 + 150 mm

• Peripherals: 500 + 150 mm

AC INPUT RATING

• 100 - 240Vac: 14A-7A 50Hz-60Hz

DC OUTPUT RATING

• +3.3V and +5V: 22A (120W)

• +12V: 100A (1200W)

• -12V: 0.3A (3.6W)

• 5Vsb: 3A (15W)

• Total: 1200W

OPERATION

• PF Correction: Active @0.96

• MTBF: 100,000 hours

• Temperature: 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

• Rating: 80 Plus Gold

• 20% loading: 90.97% @115Vac

• 50% loading: 91.55% @115Vac

• 100% loading: 88.51% @115Vac

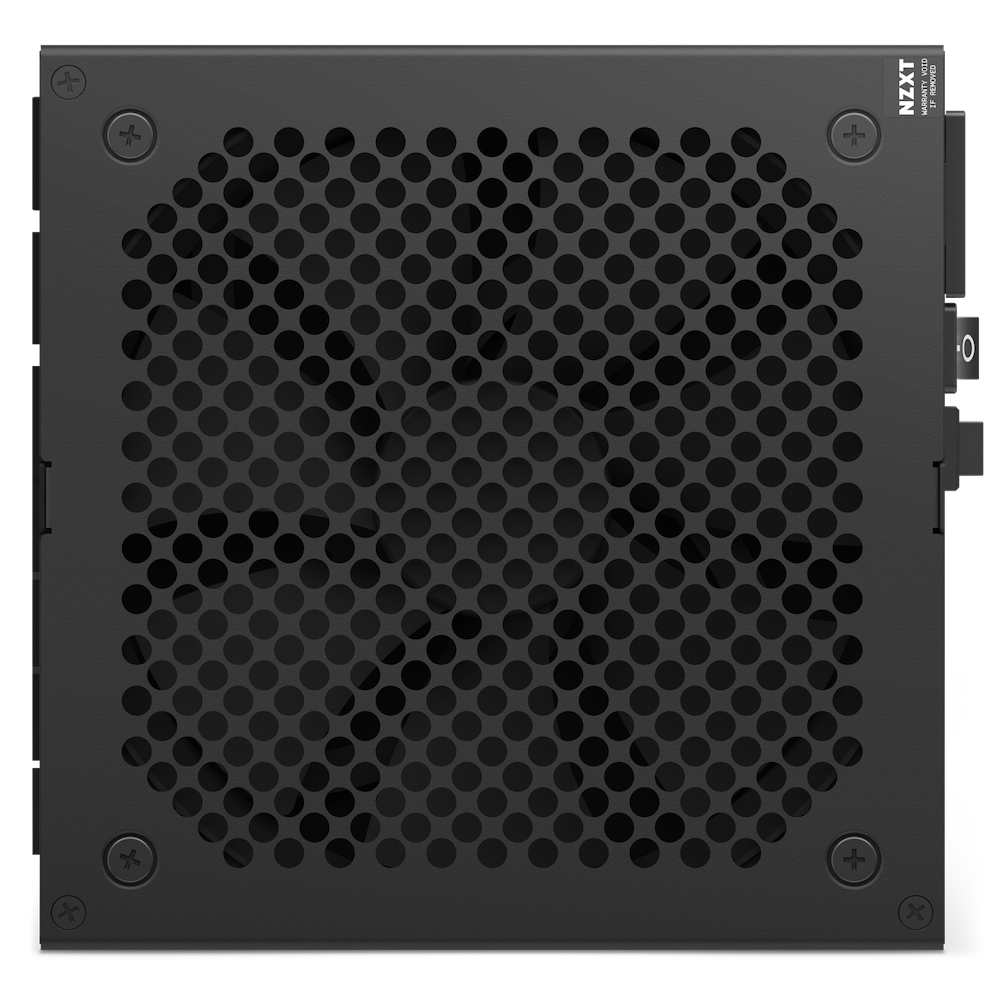

FAN SPECS

• Dimensions: 135 x 135 x 25 mm

• Speed: 0-2300 ± 10% RPM

• Airflow: 93.02 CFM (Tpy.)

• Noise: 44.5 dBA max

• Bearing: Fluid Dynamic Bearing (FDB)

GENERAL

• Dimensions: 150 x 150 x 86mm

• Material(s): Steel, PCB and Plastic

• Compliance Standard: ATX12V v3.0 / EPS12V v2.92

• Regulation & Certification: cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

• Warranty: 10 years

• Model Number: PA-2G1BB

UPC

• UPC (CN): 810074842549

• UPC (US): 810074842563

• UPC (EU): 810074842570

• UPC (UK): 810074842587

• UPC (AU): 810074842594

• UPC (JP): 810074842600

• UPC (WO): 810074842631

EAN

• EAN (CN): 5056547202464

• EAN (US): 5056547202488

• EAN (EU): 5056547202495

• EAN (UK): 5056547202501

• EAN (AU): 5056547202518

• EAN (JP): 5056547202525

• EAN (WO): 5056547202556
