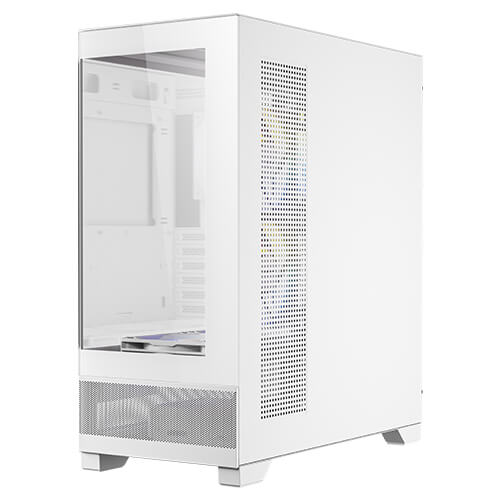

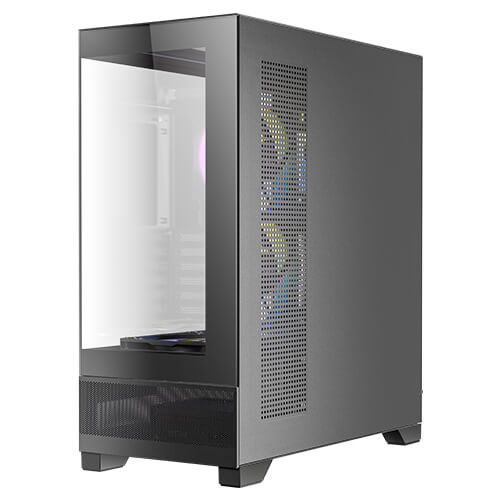

CX700 RGB ELITE / CX700 RGB ELITE WHITE
MID-TOWER GAMING CASE
描述
- 270° 全景钢化玻璃, 无缝全景设计独具特色
- 大进气垂直风道, 网状散热孔提供垂直气流, 加速废热排除
- 免工具面板, 固定卡扣设计使组装和拆卸更加轻松
- RGB 灯校展示, 其中5 个预先安装反叶扇, 提供出色气流与美观效果
- 预安装6 x 120mm 固彩RGB 风扇, 诚意百分百
- 最大可支援2 组水冷(顶部安装360mm, 侧边240mm)
- 极为丰富的I/O 面板, 配置高速TYPE-C 3.2 Gen2 端子
- 可重复使用的PCI-E 档案, 提供最佳组件体验
- 支援RTX40 系列GPU, 最大GPU 长度: 410mm

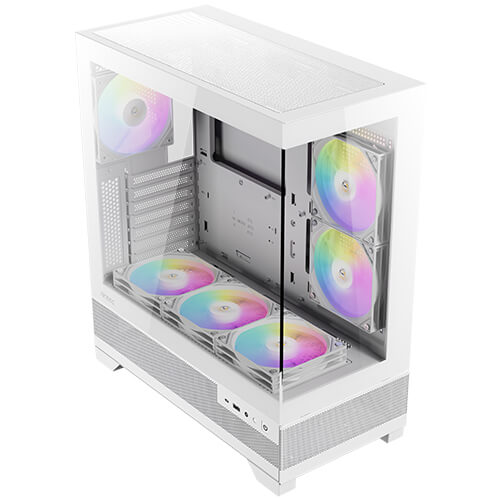

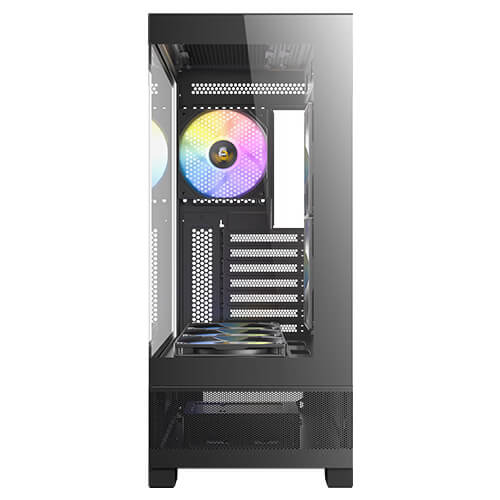

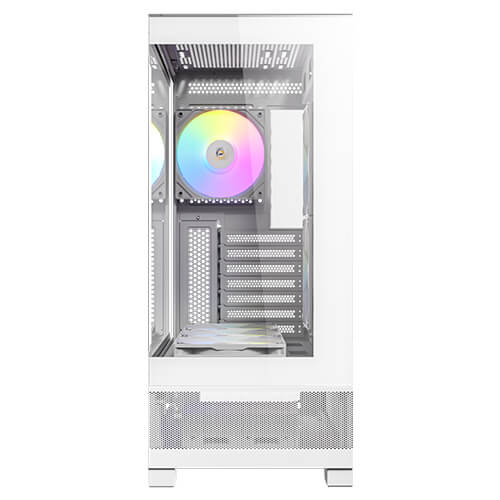

Panoramic 270 ° View
Standing out with full-view design on the seamless 4mm steel-tempered glass, CX700 RGB ELITE's left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.
Tool-Free Panels
Front and side panel adopt fixing stud design, which makes assembly and disassembly easier and helps avoid possible glass breakage.
Vertical Cooling with Massive Air Intake
Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
Display with
RGB Fans
RGB Fans
9 fan positions with 5 pre-installed reverse fans provide great airflow and aesthetic appeal.
Pre-Installed 6 x 120mm Fixed Mode RGB Fans
Daisy-chained to PSU.
Support
2 x Water Cooler
2 x Water Cooler
Support simultaneous installation of 360mm radiator on top and 240mm radiator on side.
When installing a 240mm radiator on the side, the length of the graphics card is limited to 270mm.
When installing a 240mm radiator on the side, the length of the graphics card is limited to 270mm.
EVA PSU
Cushion Pads
Cushion Pads
With EVA anti-vibration foams on the power supply mount position, your lovely PC hardware is well protected against any jar or resonance caused by PSU operation.

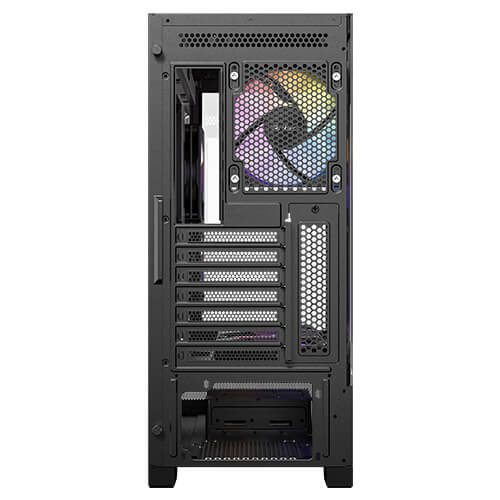

Full Reusable PCI Slot Covers
Reusable PCI slot covers fulfill an optimal build experience.
I/O Panel
Up to 9 Fans Simultaneously
When installing a 240mm radiator on the side, the length of the graphics card is limited to 270mm.
Powerful Air Cooling Compatibility
Max. CPU Cooler Height: 160mm

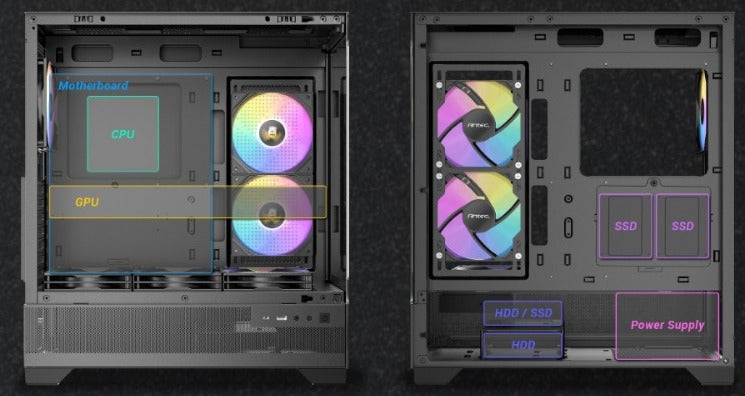

Compatibility
- Motherboard support ATX, Micro-ATX, ITX
- CPU cooler max height ≤ 160mm
-
GPU max length ≤ 410mm
≤ 270mm (When water cooling
is installed on the side)
- 2.5" 2
- 3.5” / 2.5” Drive Mounts 2 / 1
-
Power Supply max length ≤ 210mm (With HDD cage) (Include cable)
≤ 270mm (Without HDD cage) (Not include cable)
Support Lengthy RTX 40 Series GPU
Max GPU Length:410mm / 270mm (When water cooling installed on the side)
More Space
Than You Think
Than You Think
Still plenty of room for heat dissipation between the thick RTX 40 graphics card and PSU shroud fans.

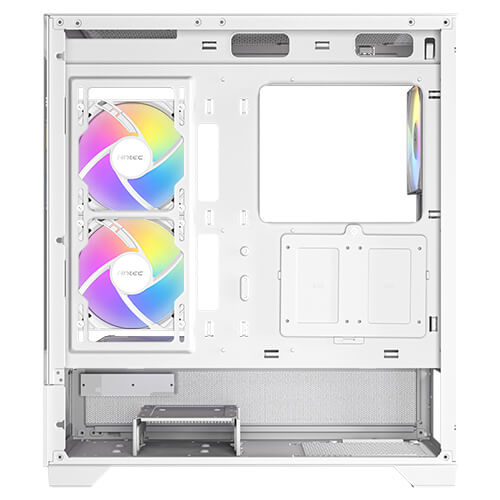

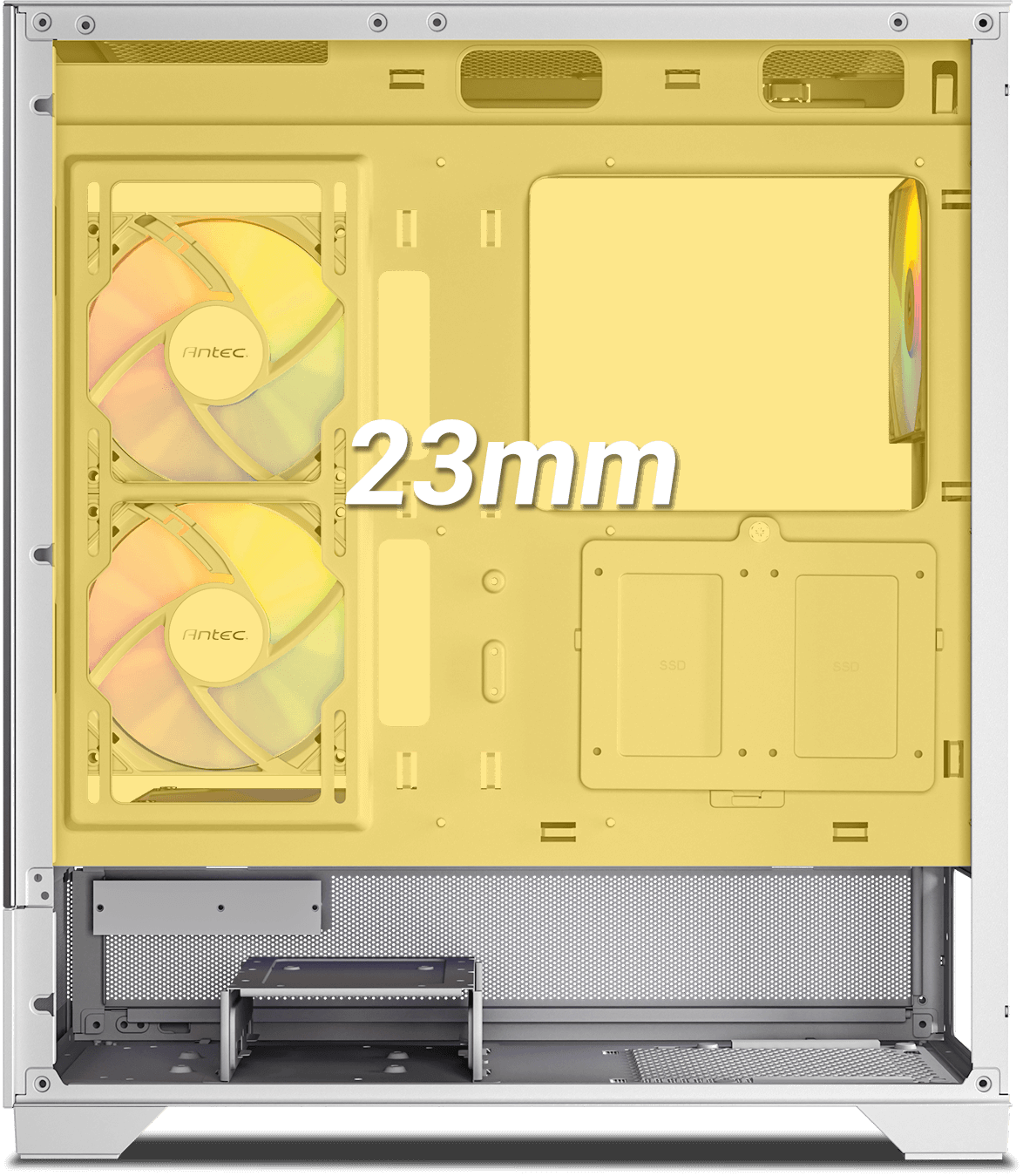

Ample Cable
Management Space
Management Space
23mm of cable management space enusres your PC build looks neat.
Dimensions
436 x 210 x 486mm (DWH)
SPECIFICATIONS
|
||||||||||||
| Drive Bays | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| Fan | ||||||||||||
|
||||||||||||
| Radiator Support | ||||||||||||
|
||||||||||||
| Clearance | ||||||||||||
|
||||||||||||
| Miscellaneous | ||||||||||||
|
||||||||||||
