描述
TUF Gaming 850W 金牌是一款高效且可靠的电源供应器，专为长期使用而设计。
- 电容和电感通过了严格的测试以获得军用级认证。
- 双滚珠轴承的使用寿命最长可达油封轴承设计的两倍。
- PCB 保护涂层可防止潮湿、灰尘和极端温度。
- 80 Plus 金牌认证是日制电容器和其他优质组件的结晶。

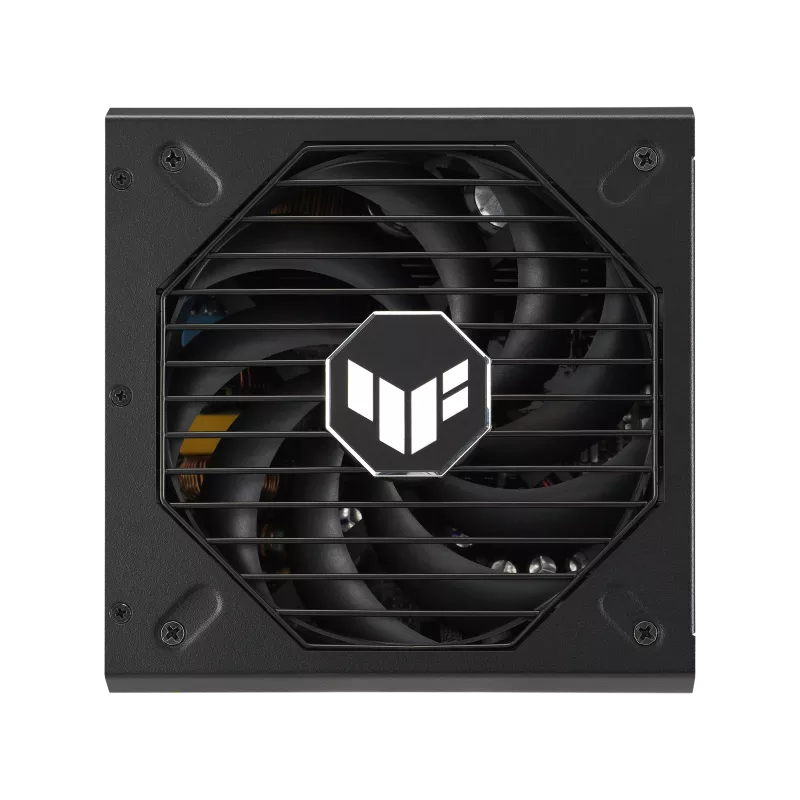

- 轴向式风扇设计具备较小的风扇轮毂以使用更长的叶片，阻隔环则可提高向下风压。
- 全模组化线材使您的主机保持整洁。
- 包括10 年保修。
型号
TUF Gaming 850W Gold
Intel Form Factor
ATX12V
ATX 3.0
Yes
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus 金
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A25A70.8A 0.8A 3A
Combined Load
130W 130W 850W 9.6W 15W
Total Output
850W
Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

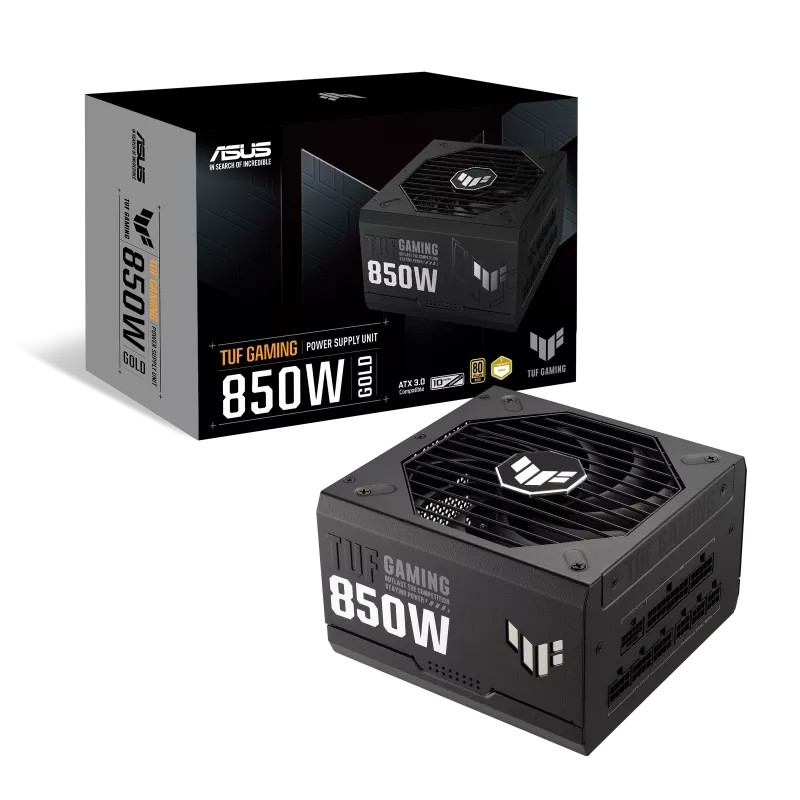

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1
Weight
2.38kg (single PSU)
0dB Fan Button
No
