描述

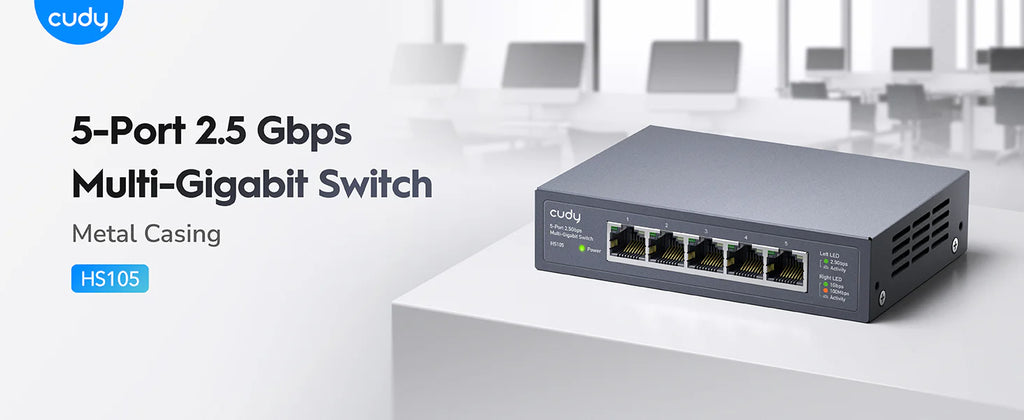

5埠2.5G非网管交换机，HS105 1.0
HS105 1.0
一款带金属外壳的5 埠2.5G 交换机，非常适合NAS 或频宽密集需求的2.5Gbps 有线网路扩充。
5 个2.5G 乙太网路端口
IGMP 侦听、环路预防最大10.5W，空闲4.7W
119×85×28毫米（4.69×3.35×1.1吋）
桌面式、壁挂式金属外壳
| 型号版本 | HS105 1.0 | |
|---|---|---|
| Protocols | 802.3 Protocols |
|
| Advanced |
|
|
| Memory/Storage | Flash/ROM | 1 MB (8 Mbit) NOR |
| Interfaces | 2.5G RJ45 Ports | 5 |
| LED |
|
|
| Power Input | DC Jack | |
| Performance | Copper Speed and Distance |
|
| MAC Address Table | 8192 | |
| Max Switching Capacity | 25 Gbps | |
| Max Forwarding Rate | 18.6 Mpps | |
| Jumbo Frame | 15 KB | |
| Packet Buffer | 4 Mbits | |
| Power | Basic Power Saving | True |
| Power Methods | DC | |
| DC | 12V 1A | |
| Max Power Consumption (W) | 10.5W | |
| Idle Power Consumption (W) | 4.7W | |
| Reliability | Grounding Methods | Grounding Point |
| Lightning/Surge Protection | 2kV | |
| ESD Contact Protection | 4kV | |
| ESD Air Protection | 8kV | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Package Content |
|
|
| Mechanical | Installation |
|
| Casing Material | Metal | |
| Dimension | 119×85×28 mm 4.69×3.35×1.1 inches |
|
| Ordering Information | Retail Package Dimension | 165×123×60 mm 6.5×4.84×2.36 inches |
| Retail Package Weight | EU: 456 g (0 oz.) | |
| Carton Net Weight | EU: 9.1 kg (20.06 lbs) | |
| Carton Gross Weight | EU: 9.9 kg (21.83 lbs) | |
| Carton Dimension | 376×264×338 cm 14.8×10.39×13.31 inch |
|
