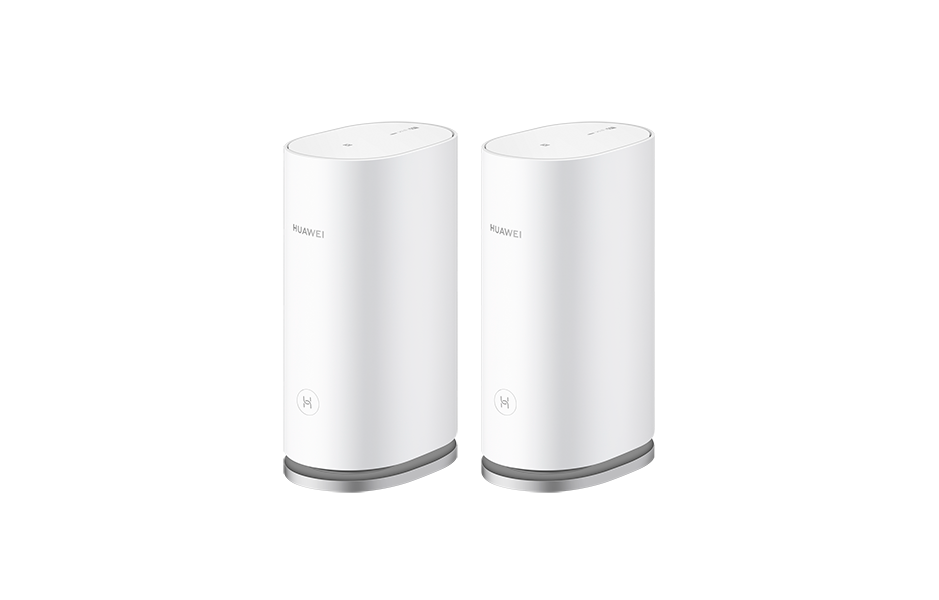

HUAWEI WIFI MESH 7 WS8800 MESH 路由器(2件装)

IEEE 802.11b/g/n/ax

2 x 2 MIMO 2.4 GHz

IEEE 802.11a/n/ac/ax

2 x 2 MIMO 5 GHz Low Band

IEEE 802.11a/n/ac/ax

4 x 4 MIMO 5 GHz High Band

2.4 GHz

574 Mbps (theoretical)

5 GHz Low Band

1201 Mbps (theoretical)

5 GHz High Band

4804 Mbps (theoretical)

Total theoretical negotiated rate

6579 Mbps

2.4 GHz & 5 GHz Low Band & 5 GHz High Band (supports prioritize 5 GHz)

Internal antennas

512 MB RAM + 256 MB ROM

*Due to limitations in CPU processing power, memory used by the operating system and pre-installed applications, the actual space available to users may be less than the stated memory capacity. Actual memory space may change due to application updates, user operations, and other related factors.

The drop network cable can be inserted into any one of the four 10/100/1000 Mbps auto-negotiation Ethernet ports to access the Internet.

Power port, Network port, Reset button (pinhole), and H button

Connect to HarmonyOS connect devices or WPS wireless devices with a press of H button

Independent reset pinhole

One "H" indicator (red/blue)

12V DC, 3A

< 36 W

100 – 240V

50 - 60 Hz

802.11kvr protocol, PPPoE/DHCP/static IP address WAN connection methods, Wi-Fi timer, Guest Wi-Fi, Device speed limiting, MAC address filter, Parental control, VPN pass through, DMZ/virtual server

Supports HUAWEI HomeSec™ security protection: Wi-Fi brute force attack prevention, Unauthorized network access prevention, WPA3

Supported

0°C to 40°C (32°F–104°F)

–40℃ to +70℃ (–40℉ to +158℉)

5% to 95% (non-condensing)
