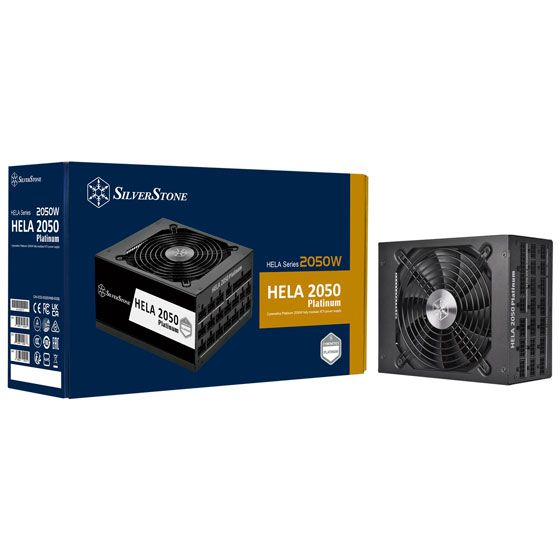

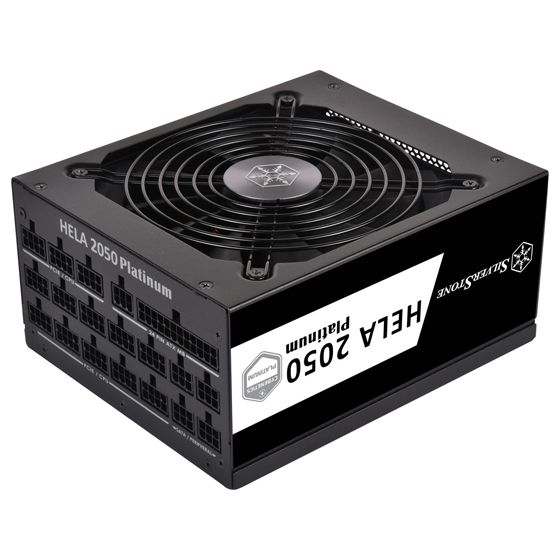

HELA 2050 Platinum
Cybenetics Platinum 2050W fully modular ATX power supply
产品特色
- ￭ Compact and high density design with a depth of 180mm for easy integration
- ￭ Intel ATX12V 2.52 support
- ￭ Built-in MCU semi-fanless mode to achieve optimized cooling performance
- ￭ 2050W 24/7 continuous power output with 50℃ operating temperature
- ￭ Super flexible black flat cables
- ￭ 100% modular cables
- ￭ 12-Pin GPU connector support
技术规格:
SPECIFICATION |
|
Max. DC Output |
2050W |
Power density |
882W per liter |
Model (safety certification) |
SST-AX2050MCPT-A |
Color |
Black (lead-free paint) |
Combined +3.3V & +5V |
120W |
Combined +12V |
2040W |
Input Voltage |
2050W: 200~240 Vrms | 1650W: 103 ~ 264 Vrms |
Input Frequency Range |
47Hz ~ 63Hz |
PFC |
Active PFC (PF>0.95 at full load) |
Efficiency |
≥89% & <91% overall efficiency |
MTBF |
100,000 hours |
Operating temperature |
0°C ~ 50°C |
Protection |
Over Current Protection |
Over Power Protection |
|
Over Voltage Protection |
|
Short Circuit Protection |
|
Over Temperature Protection |
|
Connectors |
1 x 24 / 20-Pin motherboard connector |
2 x 8 / 4-Pin EPS / ATX 12V connectors |
|
1 x 12-Pin GPU connector |
|
18 x 8 / 6-Pin PCIe connectors |
|
12 x SATA connectors |
|
3 x 4-Pin Peripheral connectors |
|
1 x 4-Pin Floppy connector |
|
Cooling System |
135mm dual ball bearing fan |
Form factor |
ATX (PS2) |
Noise Level |
0 dBA minimum |
Dimension |
150 mm (W) x 86 mm (H) x 180 mm (D) |
5.91"" (W) x 3.39"" (H) x 7.09"" (D) |
|
Weight |
4.34 kg |
Certification |
Cybenetics Platinum |
Other |
Switch on rear side to activate / de-activate semi-fanless mode |
GPU Support list |
|
Compatible with ATX12V v2.4 |
